Grant, George B. (George Barnard), 1849-1917 · Boston, Grant gear works, incorporated · leaf 37

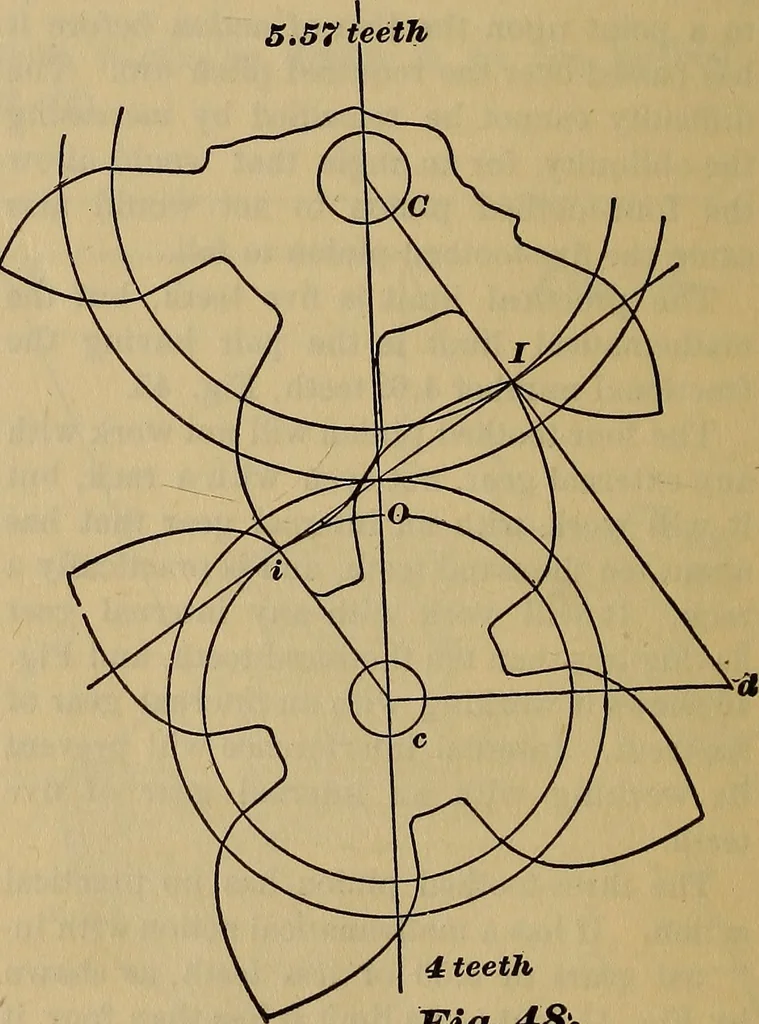

any gear having 10.17 or more teeth. Fig. 49shows the 3x10.17 limiting pair, and Fig. 50shows the three-toothed pinion workingwith an internal gear of five teeth. It willnot work with an internal gear of four teeth,on account of internal interference, and there-fore the combination shown by Fig. 50… … 4 teeth Limitinp- Involute Teeth. 35 10.17 teeth
Gearing
