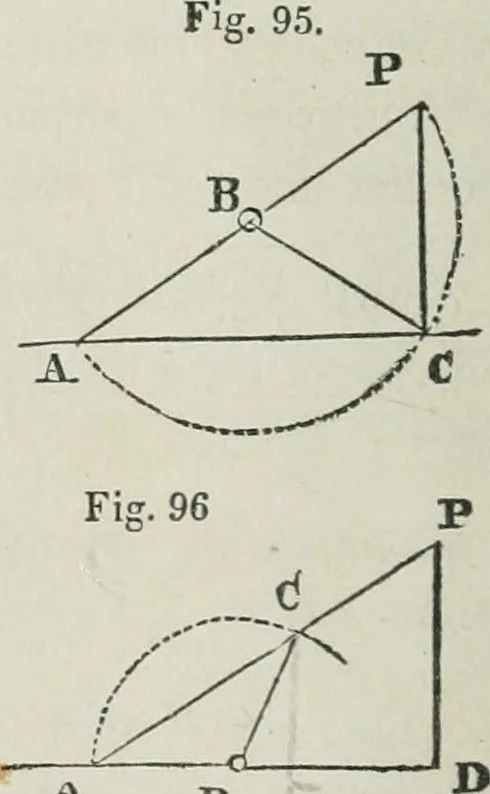

ound the end which was atP, or at A, till it meets the given line in apoint C, which will be the foot of the re-quired perpendicular. (154) Second Method. Take any point,as A, on the given line. Measure a dis-tance AB. Let the end of this distanceon the chain be held at B, and swing aroundthe end… … CH4>P. v.] Obstacles to Mcasnrement. 101 (155) Third Method. At any convenientpoint, as A, of the given line, erect a perpen-dicular, of any convenient length, as AB, andmark a point C on the given line, in the lineof P and B. Measure CA, CB and CP.Then the distance from C to the foot of the…
