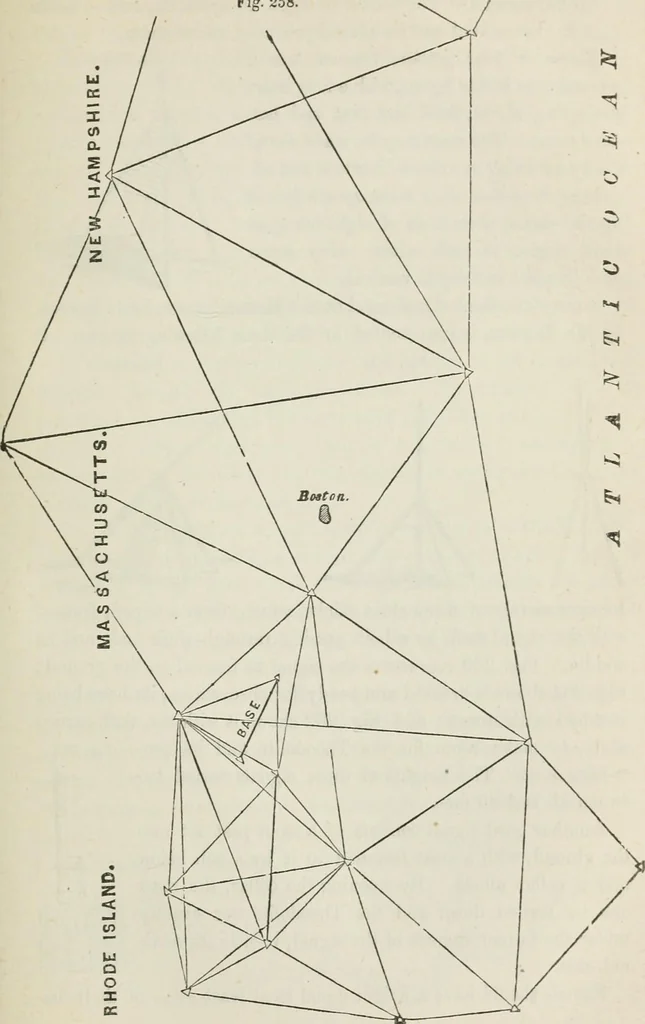

igure on the opposite page represents part of thescheme of the primary triangulation resting on the Massa-chusetts base and including some remarkably well-conditionedtriangles, as well as the system of quadrilaterals which is a valuablefeature of the scheme when the sides of the triangles are… … 266 TRIANGULAR SURVEYING. [part y (384) Signals. They must be high, conspicuous, and so madethat the instrument can be placed precisely under them. Three or four timbers framed into a Fig- 259. pyramid, as in the figure, with a long mastprojecting above, fulfil the first and lastconditions. The…
