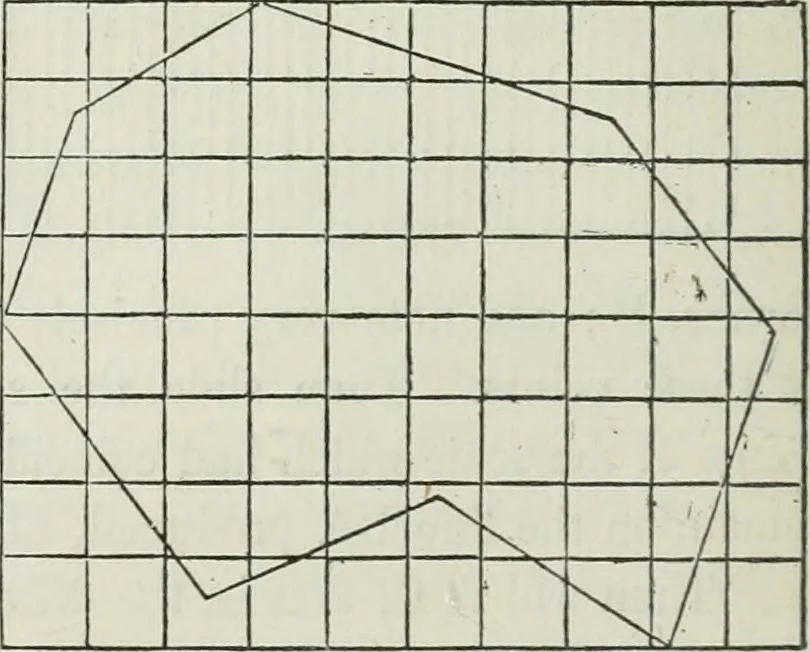

e plat) may be drawnover the plat, so as to divideit into squares, as in thefigure. The number ofsquares which fall within theplat represent so many squarechains; and the triangles andtrapezoids which fall outsideof these, may then be calcu-lated and added to the entire square chains which have… … OHAP. IV.] Calculating the Content. 49 same paper will ianswer for any number of plats drawn to the samescale. This method is a valuable and easy check on the results ofother calculations. To calculate the fractional parts, prepare a piece. of tracingpaper, or horn, by drawing on it one square of…
