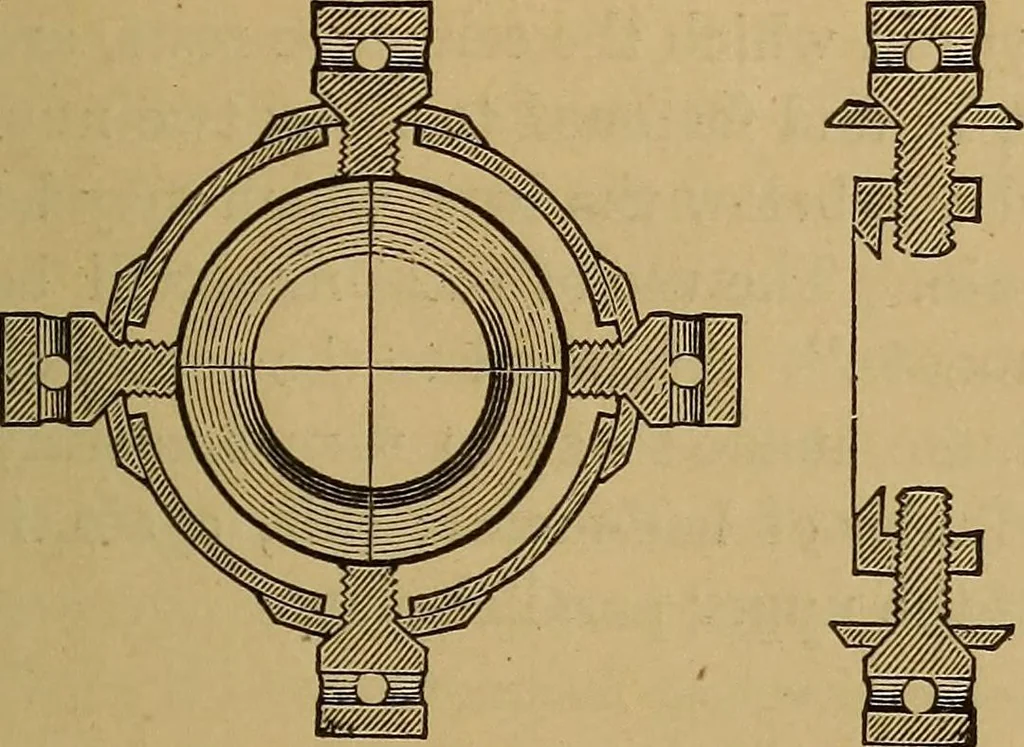

at X.They are moved by means of the screws shownat B B. A A are screws used for centring theeye-piece. C C are screws used for centringthe object-glass. At D D are rings, or collars,of exactly the same diameter, turned very truly,by which the telescope revolves in the wyes. The telescope shown in… … (29.) The Cross-hairs. These are made of very fine pla-tinum wire or of spider-threads. They are attached to a short, thick tube, placedwithin the telescope-tube, through which passloosely four screws whosethreads enter and takehold of the cross-hairring, as shown in Fig.21. In some instruments,one…
