Treatise on marine and naval architecture, or, Theory and practice blended in ship building. Illustrated with more than 50 engravings (1852)
Griffiths, John W. (John Willis), 1809-1882 · New York : D. Appleton · leaf 314

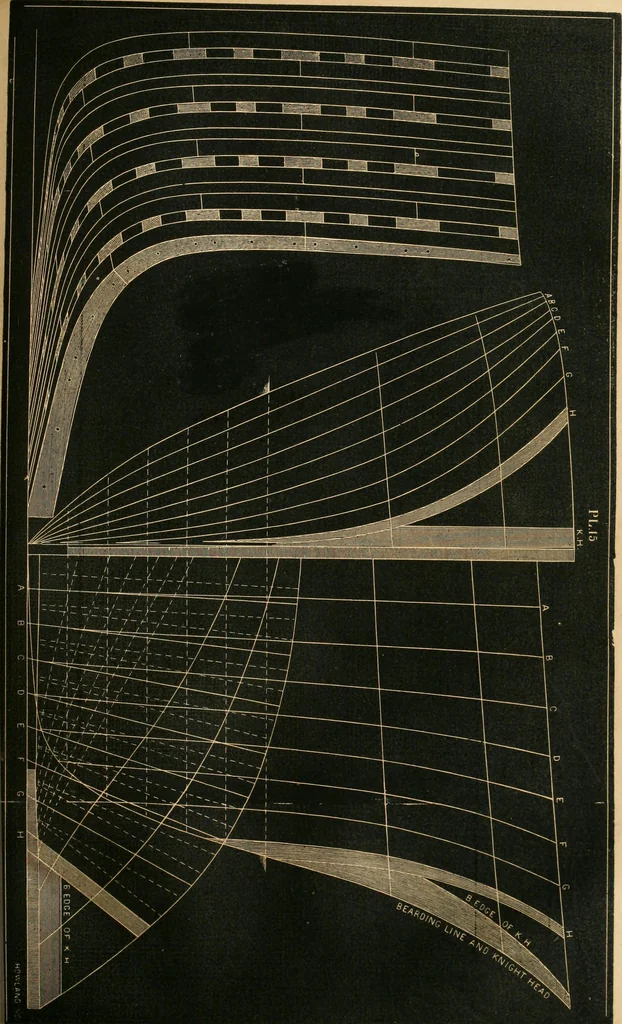

first futtock. Thethickness of the chock may now beshown by another line being strickenin the half-breadth plan, aft (if inthe after-body) of the original line;they may be tapering or parallel, as weplease ; and the same operation mayagain be performed in transferring theform of this line also to… … MARINE AND NAVAL ARCHITECTURE, 253 bevelling edge of cants, or the amountof bevel they require, may and shouldbe determined at the same time ; or inother words, one follows the other. Inour delineations of the performance ofthis part of the work by water-lines,we squared a line across the joint…
Naval architecture
