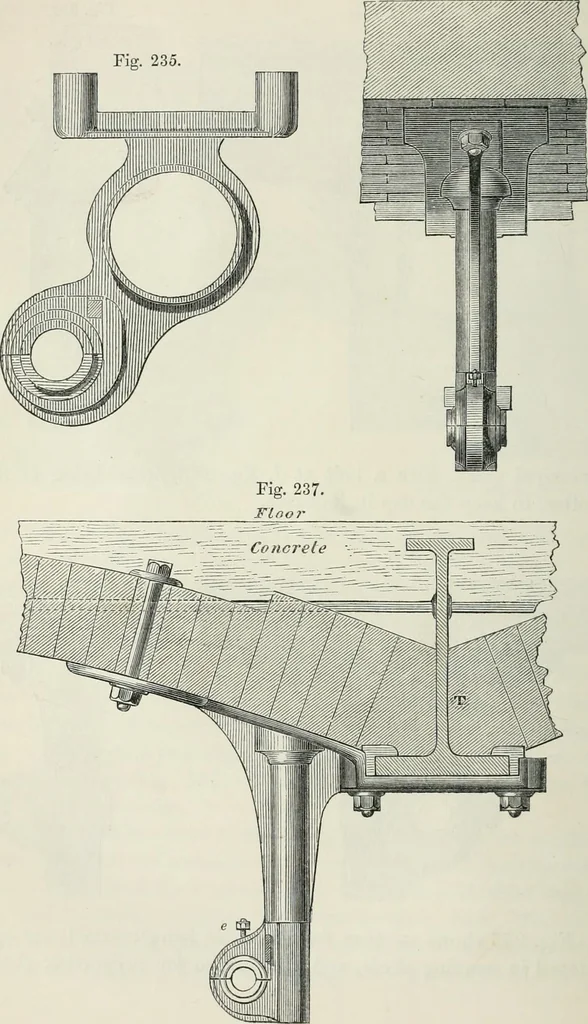

Fio-. 235 shows another form of light hanger sometimes era-ployed in weaving sheds, and also in use for supporting shafts 96 ON MACHINEKY OF TRANSMISSION^ in fire-proof mills, being bolted up to the under side of the cast-iron beams, as shown at fig. 237. Fig. 236. Fig. 235. … ox SHAFT IIAXGEKS AND rLUMMER-BLOCKS. 07 Where greater strength and firmness are required, especiallyin long hangers in which there is considerable leverage, thearrangement shown in figs. 236, 237 is adopted; the hanger inthis case is bolted to a cast-iron beam, and by an extension ofthe flange…
