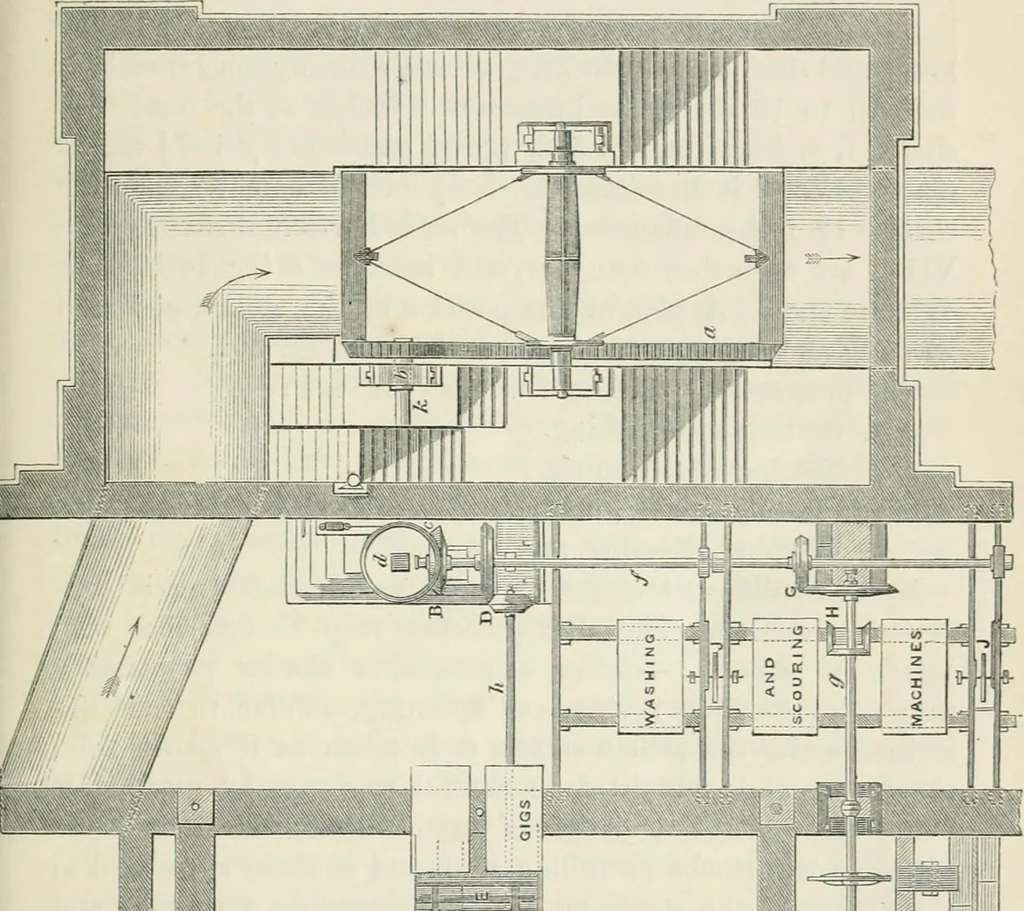

SYSTEM OF GEARING. 185 wheel, c, from which the motion is conveyed to the mill bythe vertical shaft d, and the shaft /, driving the gig and stockshafts h and g. From this arrangement of the first motion wheels, it will be Fig. 302. … ,fe.- d •• ■ ;,l ! 1 186 ON WOOLLEN MILLS. seen (see also plate VII.), that the motive power comes almostdirect upon the heaviest portion of the machinery, such as thestocks and gig machines, and by the vertical shaft, d, and thehorizontal and cross shafts above, it is transmitted to the…
