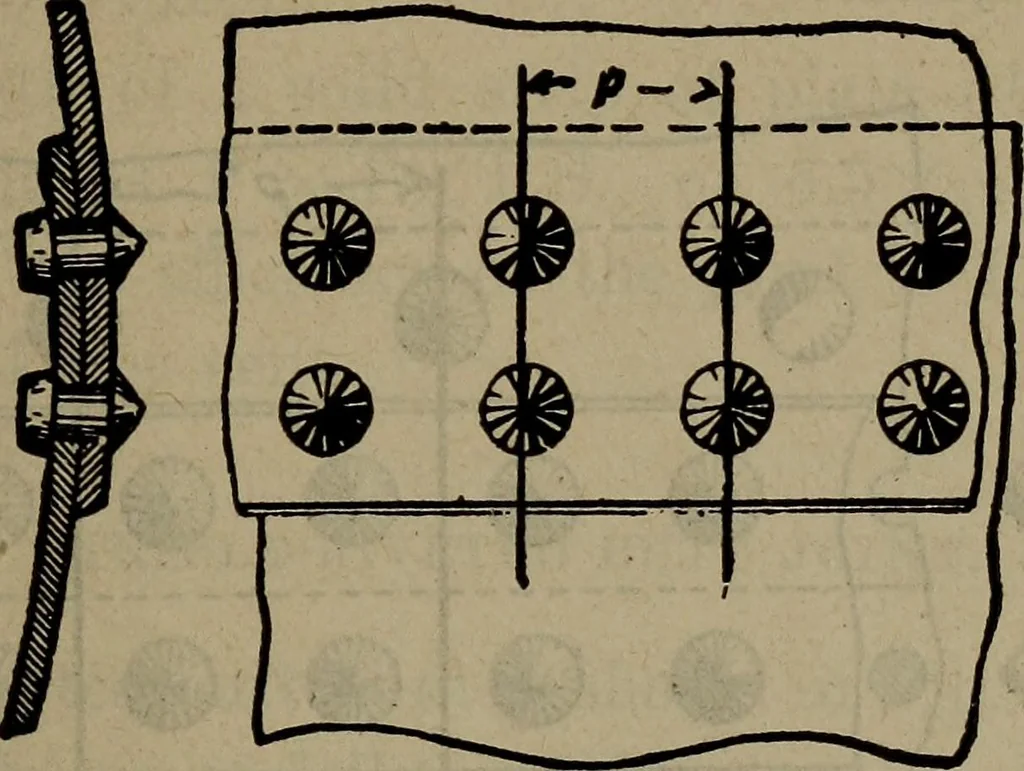

iveted lap joint. The style of priveting in this joint is what is known as chain riveting. In case the rivets are staggered, the same rules for cal-culating the efficiency will hold as with chain riveting, forthe reason that with either style of riveting the unit stripof plate has a width equal to… … Fig. 33double riveted lap joint The strength of the unit strip of solid plate is PXTXT. S.=85,312. The strength of net section of plate after drilling isIP—DXTXT.S.=59,062. The shearing resistance of two rivets is 2AXS=70,686. The crushing resistance of rivets and plate is DX^XT(XCi=i78,750. i It…
