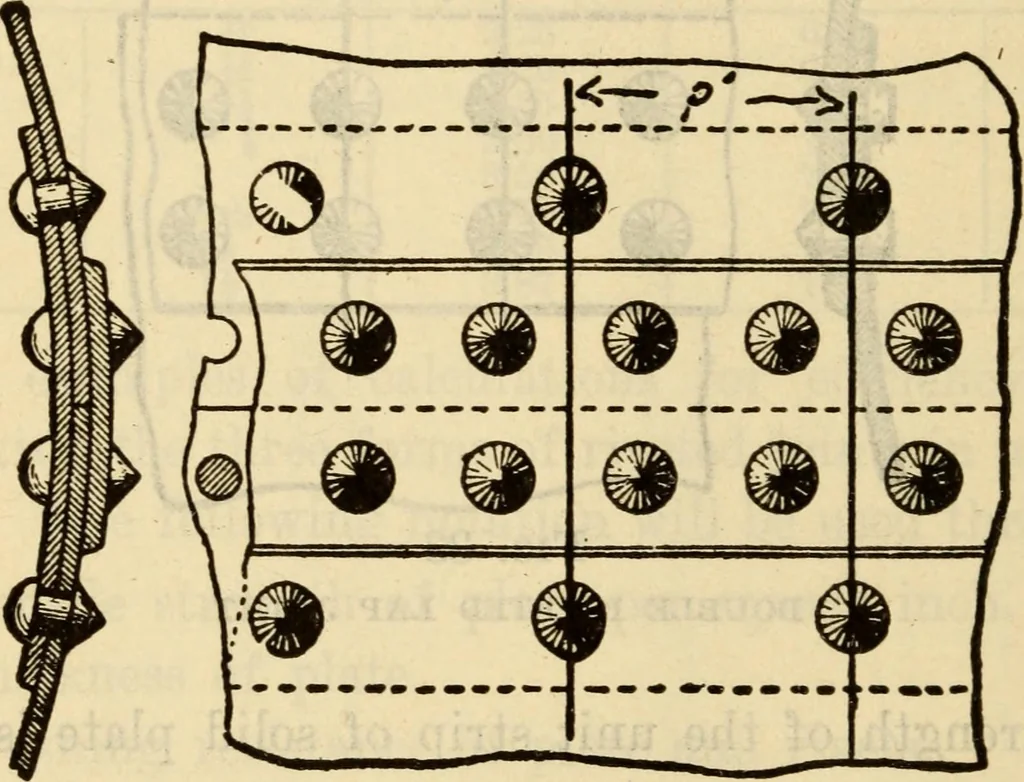

oint is illustrated by Fig. 34, andthe dimensions are as follows: P, inner row of rivets=2% inches. P, outer row of rivets=5% inches. T of plate and butt straps=T76 inch. D of hole and driven rivet=l inch. Failure may occur in this joint in five distinct ways,which will be taken up in their order.… … Pig. 34double riveted butt joint 2. Shearing two rivets in double shear and one in singlyshear. Should this occur, the two rivets in the inner rowwould be sheared on both sides of the plate, thus being indouble shear. Opposed to this strain there are four sec-tions of rivets, two for each rivet.…
