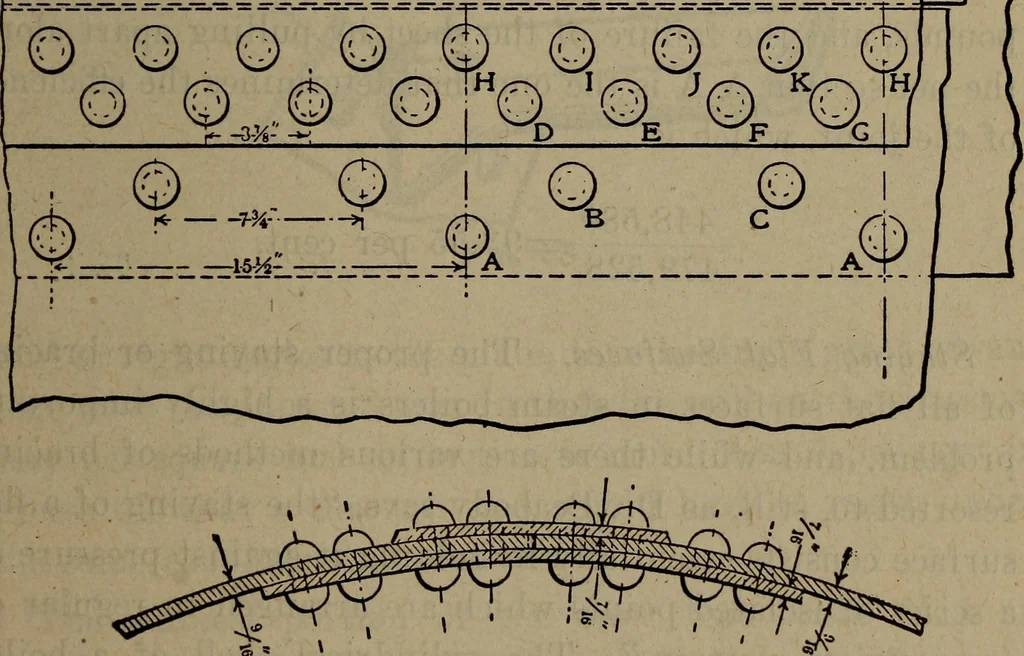

© ! © © Q ©il ,©__©__©_©__©__§jj … Fig. 37 QUADRUPLE RIVETED BUTT JOINT (6) Crushing of rivets D, E, F, G, H, I, J, K in theplate and shearing rivets A, B, C. Using the numerical values previously given: (1) (15.5—1)X0.5625X55,000=448,580 pounds. 102 Steam Engineering (2) [ (15.5—4)X0.5625X55,000] + (3X42,000X0.7854) =454,739…
