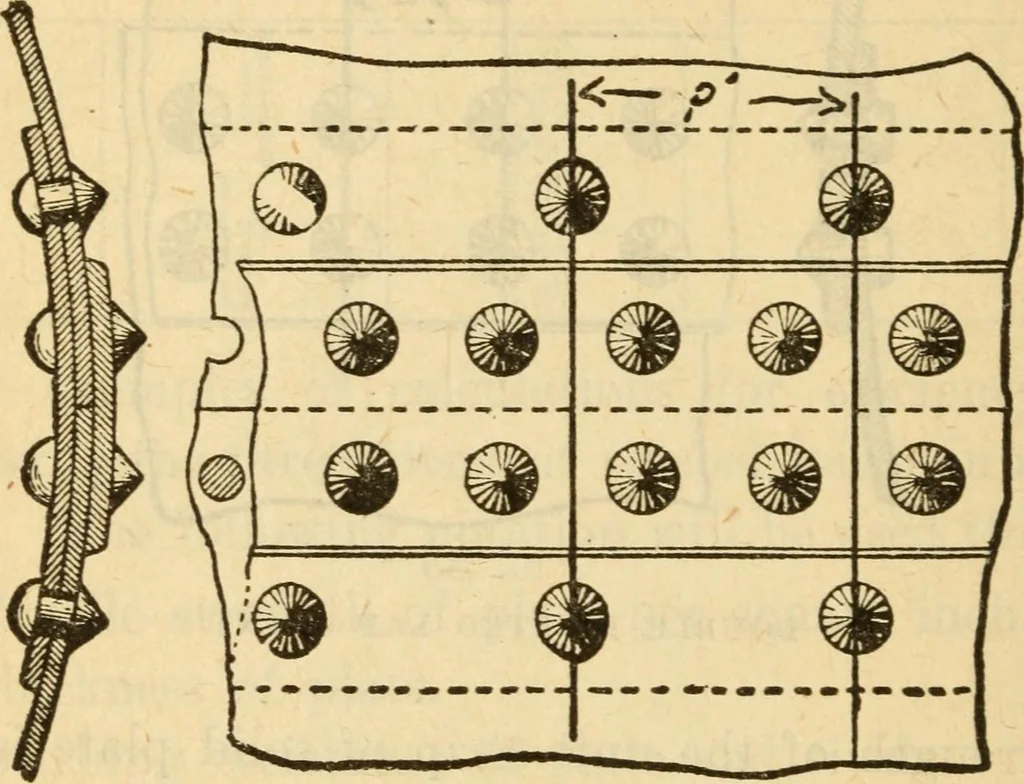

Tearing of the plate at the outer row of rivets. Thenet -strength at this point isP—DXTXT.S., which, ex-pre^sed in plain figures, results as follows: 5.5—1X.4:375X60,00Uz=118,125. … Fig. 34double riveted butt joint 2. Shearing two rivets in double shear and one in singUshear. Should this occur, the two rivets in the inner rowwould be sheared on both sides of the plate, thus being indouble shear. Opposed to this strain there are four sec-tions of rivets, two for each rivet.…
