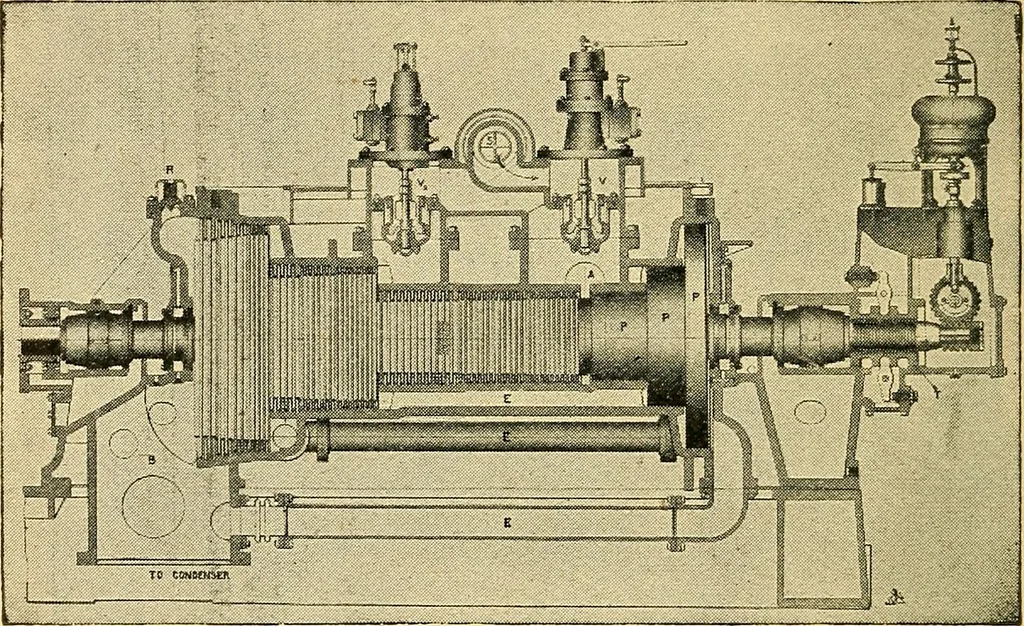

ationary 362 ENGINEERING blades. When the upper half of the cylinder is inposition, each row of stationary blades fits in betweentwo corresponding rows of moving blades. Thisarrangement may perhaps be better understood byreference to Fig. 132, which illustrates the relation ofthe stationary blades… … FIGURE 131. vanes may be considered as small curved paddles pro-jecting from the surface of the rotor, and there is alarge number of them, as, for instance, taking a 400K. W. machine, there are 16,095 moving blades and14,978 stationary blades, a total of 31,073. The stationary vanes, as previously…
