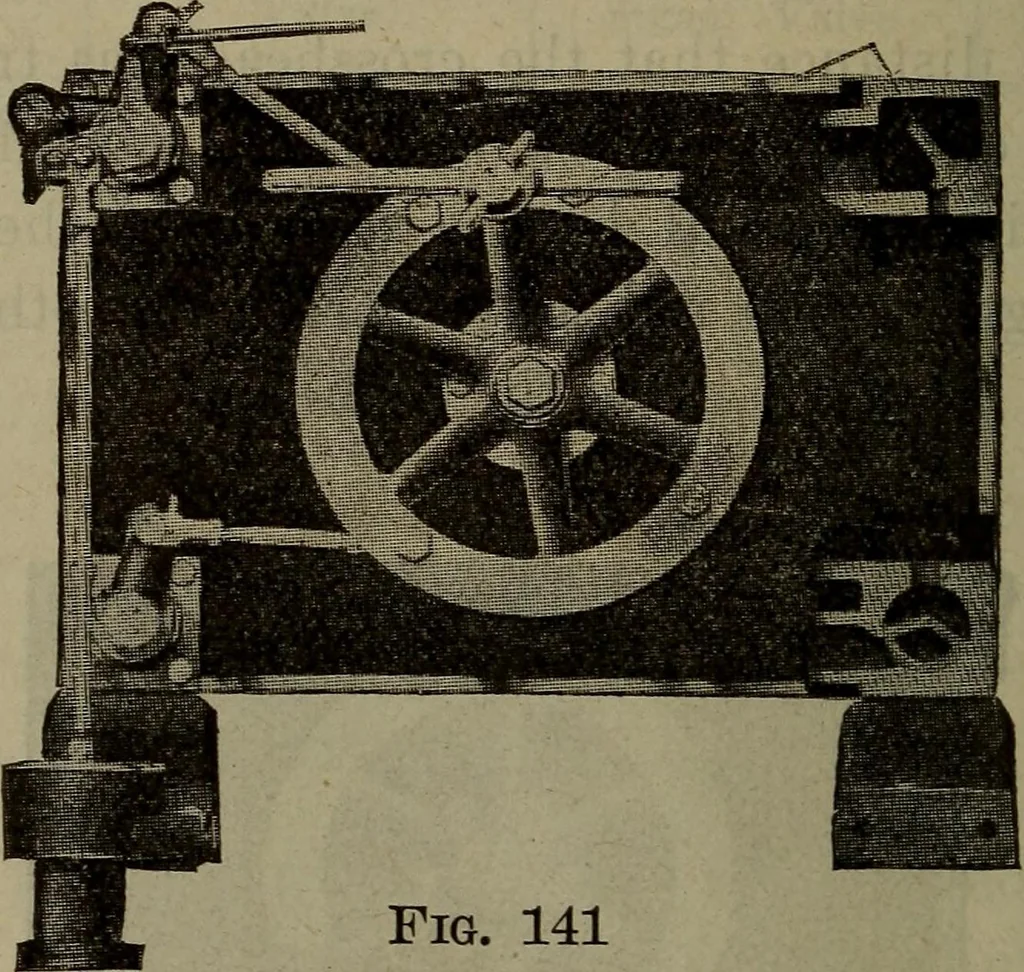

een made, tighten the locknuts on all the rods. Fig. 140 shows the wrist plate of a Eeynolds Corlissengine in its central position read)^ for adjusting valveconnections. The parts broken away show the steam andexhaust valves in their respective positions as regards lap.The valves shown are single… … Fig. 141 amount of lead. The exhanst valves wdll be correct if theyhave been set according to table 32—the wrist plate beingcentral.
