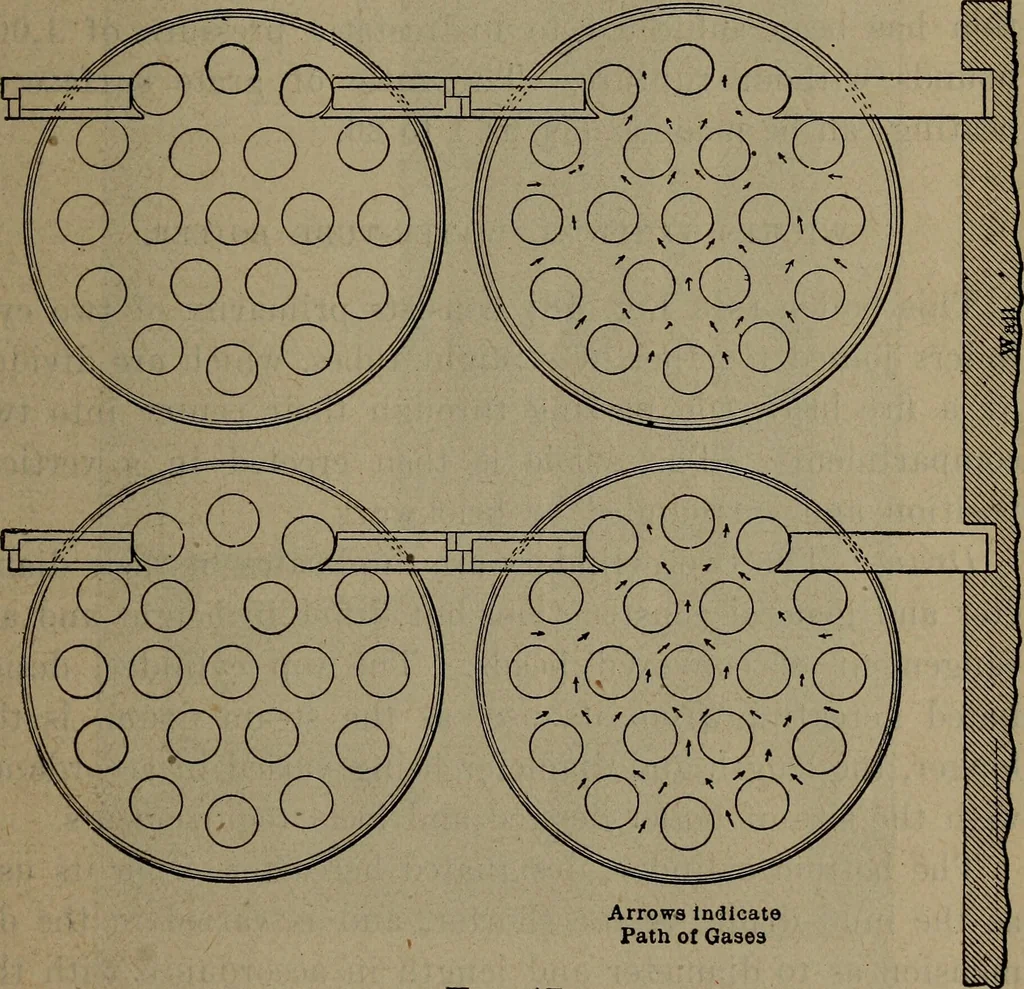

he transfer of steam and water betweenunits occurs through separate nipples, and the water nip-ples are required merely to care for the general circulationthrough the JDoiler. Bigeloiv-Hornsby Boiler 33 The arrangement of this boiler is such that it can bebafHed so that the products of combustion… … Fig. 17 uptake. Fig. 17^ which is a horizontal section throughsome of the rear units, shows how they are arranged withreference to the gas currents, and how the baffle-platesserve to guide the gases through in substantially uniformpassages. 34 Steam Engineering The smoke flue can be taken off at…
