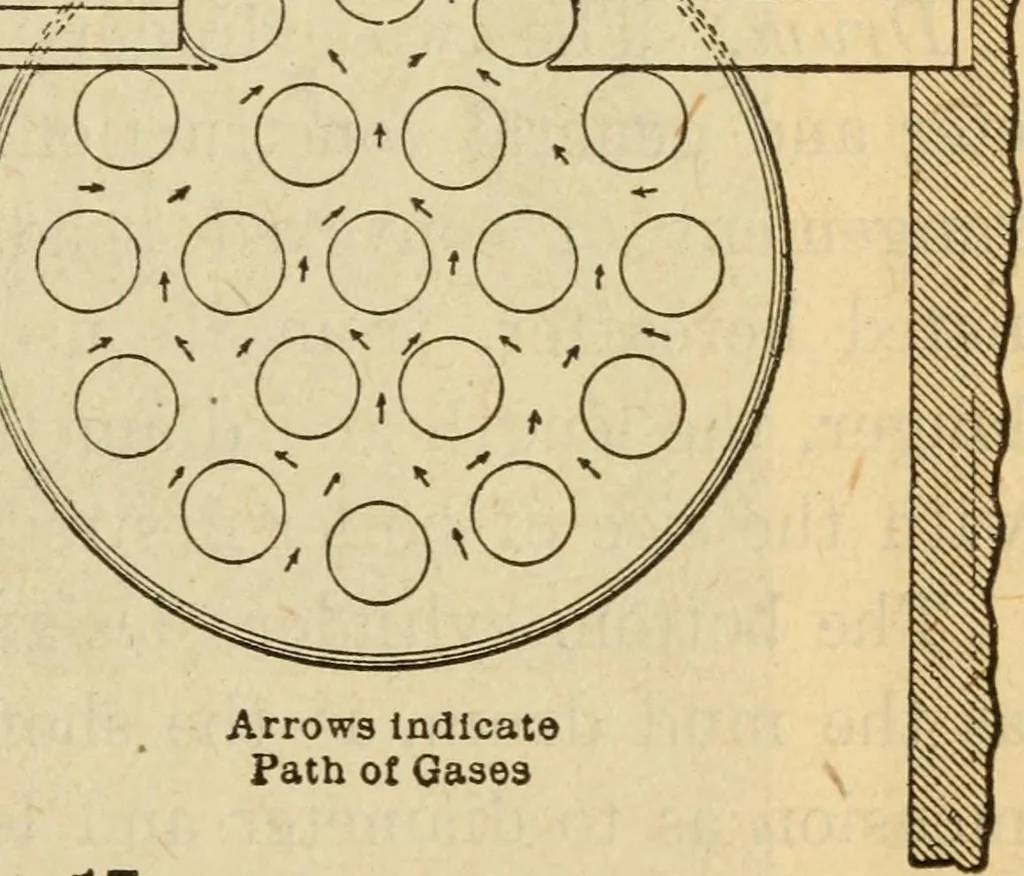

DPCS OOOOO Arrows IndicatePath ot Gases … Fig. 17 uptake. Fig. 17, which is a horizontal section throughsome of the rear units, shows how they are arranged withreference to the gas currents, and how the baffle-platesserve to guide the gases through in substantially uniformpassages. 34 Steam Engineering The smoke flue can be taken off at…
