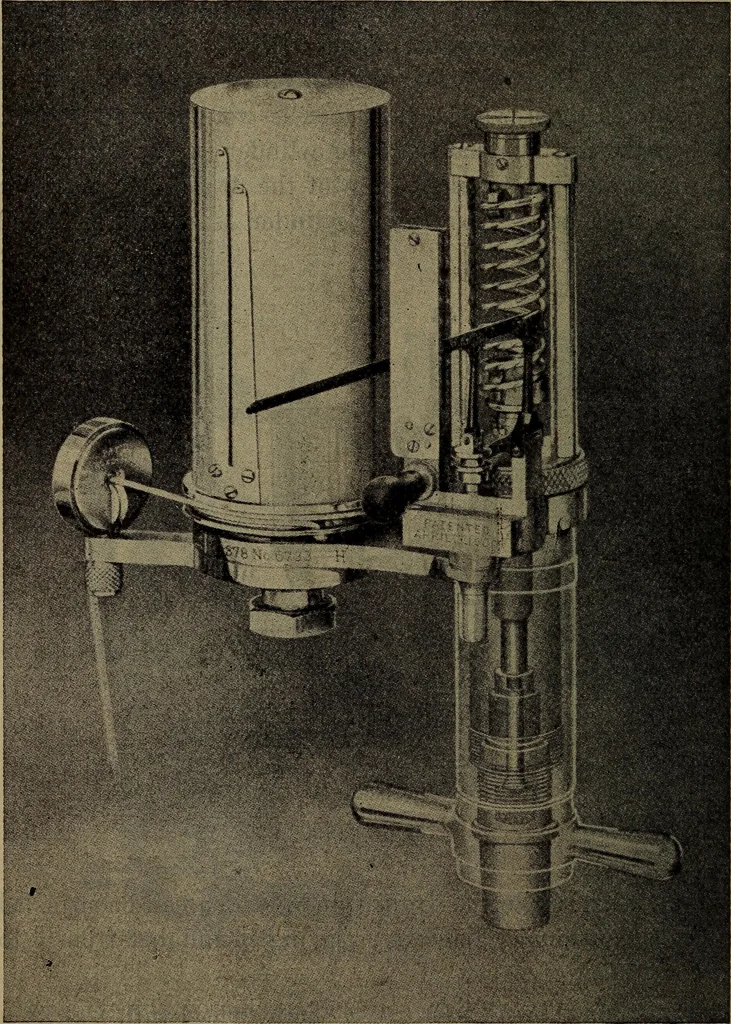

Fig. 306b loosely attached to the drum spindle which can be adjustedto take continuous diagrams, varying in number from 6 to100 per feet of paper. Fig. 306b shows the Crosby reducing wheel with Detent—This detent when applied to the reducing wheel does notaffect the connection between it and the… … UkIi Hiiii fe&wfM:iS-»aS;w; JW^ V Fig. 307 tabor indicator with outside spring Combined Steam and Gas Engine Type Gas Engine Indicator 741 reducing wheel to slacken. When the clutch is thrown in,the indicator drum is revolved to the end of the stroke andheld there by the drumcord, while the…
