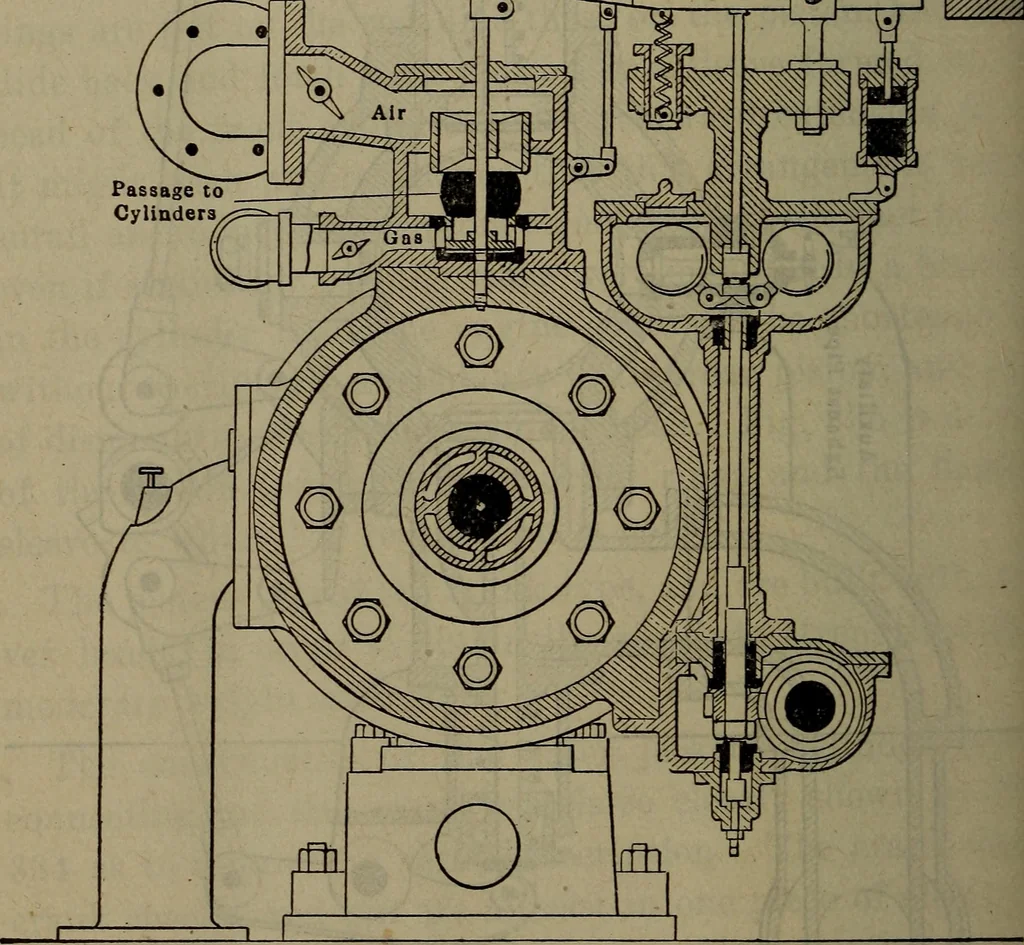

Fig. 336cross section through cylinder and valve chambers, du bois gas engine cylinder barrel, and they are drilled, instead of being cored,in order to obtain absolute accuracy in dimension and loca- 784 Steam Engineering tion. The inlet and exhanst valves of each cylinder areopened by a cani^, two… … Fig. 337 cross section through cylinder, mixing-valve chamber and governor, du bois gas engine One mixing valve serves both cylinders, as indicated inFig. 334, where the mixing valve is shown immediatelyabove the rear end of the piston-rod packing sleeve. Fig.337 shows more of the details. The…
