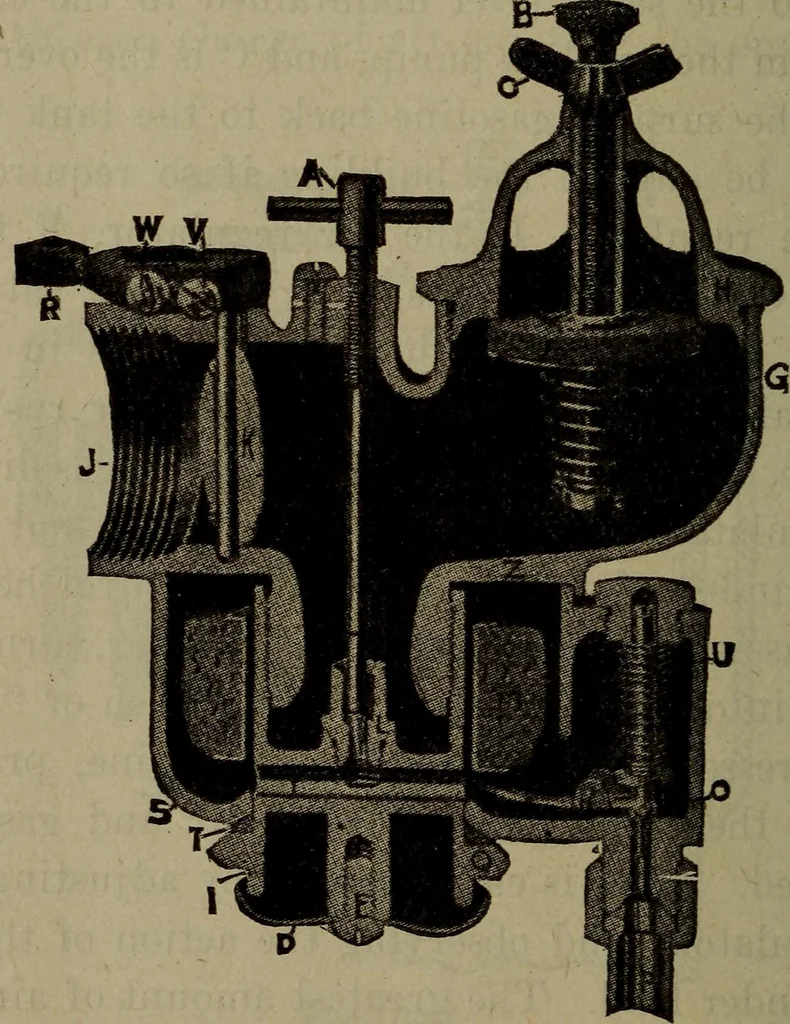

er and lightmotors, although it is applicable to any type of engine. Afloat, M, controlling a valve, 0, takes tlie place of pump and 798 Steam Engineering overflow system shown in Fig. 342, maintaining a constantlevel of the fuel in the spray nozzle, L. The float chamberis placed around the spray… … Fig. 343 carbureter, and connected by pipe P to float valve 0. Theliquid fuel is thus fed to the float chamber by gravity. Byusing a light air pressure in the tank it may be placedhelow the carbureter but this is not often done. The mixeras shown in Fig. 342 is designed for a given engine speed.If…
