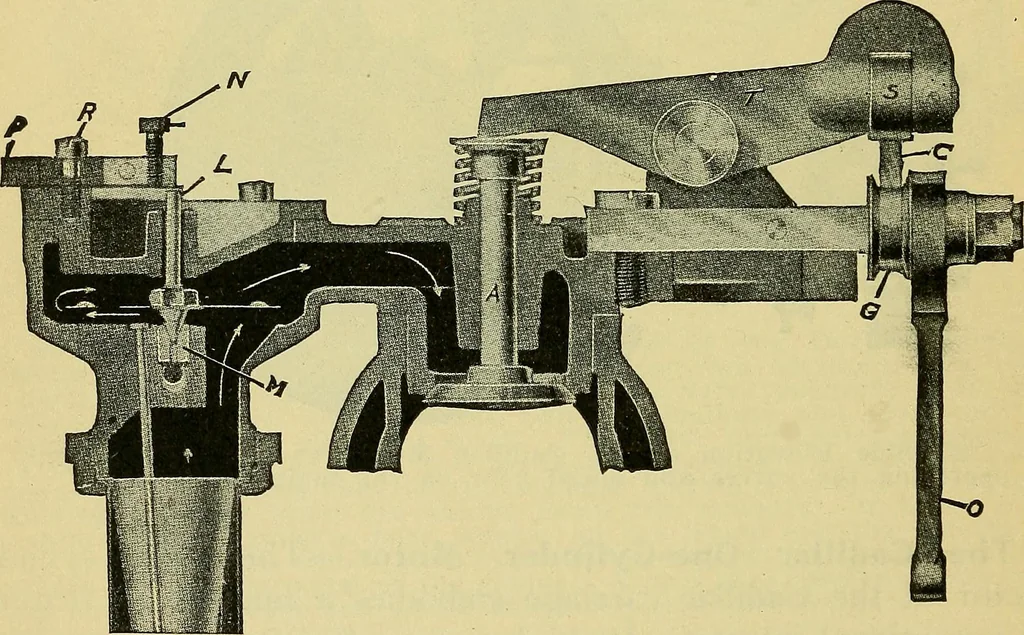

Fig. 253.—Part Section of the Cadillac Motor, showing position of valvesand spark plug- and the method of securing the copper jacket cover. … Fig. 254.—Carburetter and Intake Valve Mechanism of the Cadillac Motor.L is the gasoline valve; M, the gasoline inlet; N, the adjusting screw.A is the inlet valve; T, the walking-beam for opening it under positiveimpulse; C, the end of the eccentric rod, raising T by bearing on roller,S, with…
