Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 370

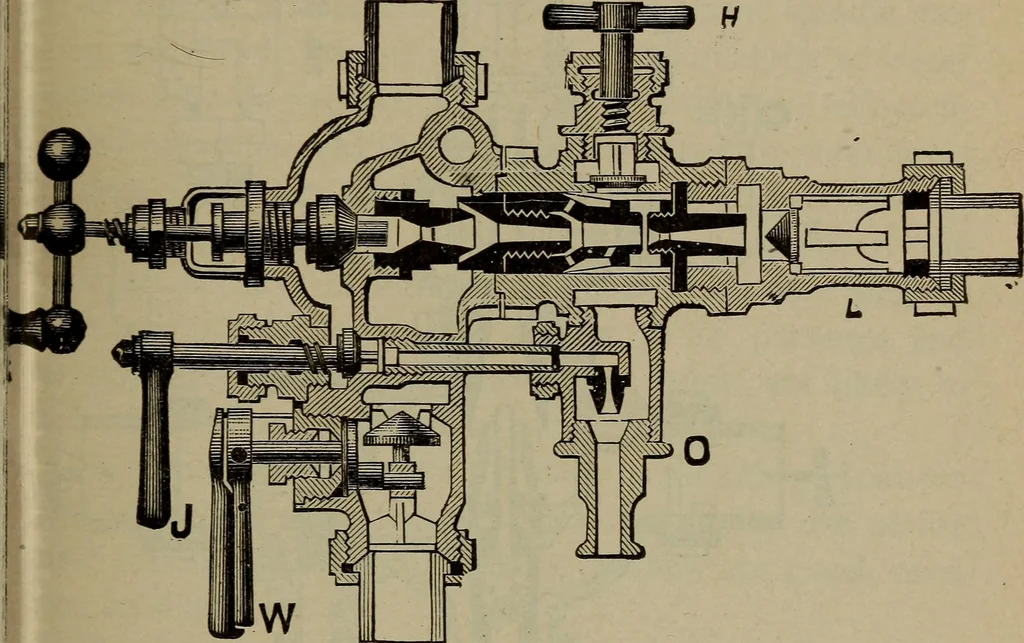

first. Flanged Monitors. Since 1885 the body of the Moni-tor has been divided into two parts, which are firmly INJECTORS, STEAM GAUGES, ETC. 36$ held together by a double flange securely bolted. Thisvery convenient arrangement enables the interior partsto be taken out readily, for cleaning or… … Figure 167The Monitor, Interior View the spindle outside the steam chamber, diminishing itswear. The packing can be adjusted and tightened bymeans of a large central nut, still preserving the sim-plicity and convenience of an ordinary stuffing box. The water valve has been provided with a…
Locomotives
