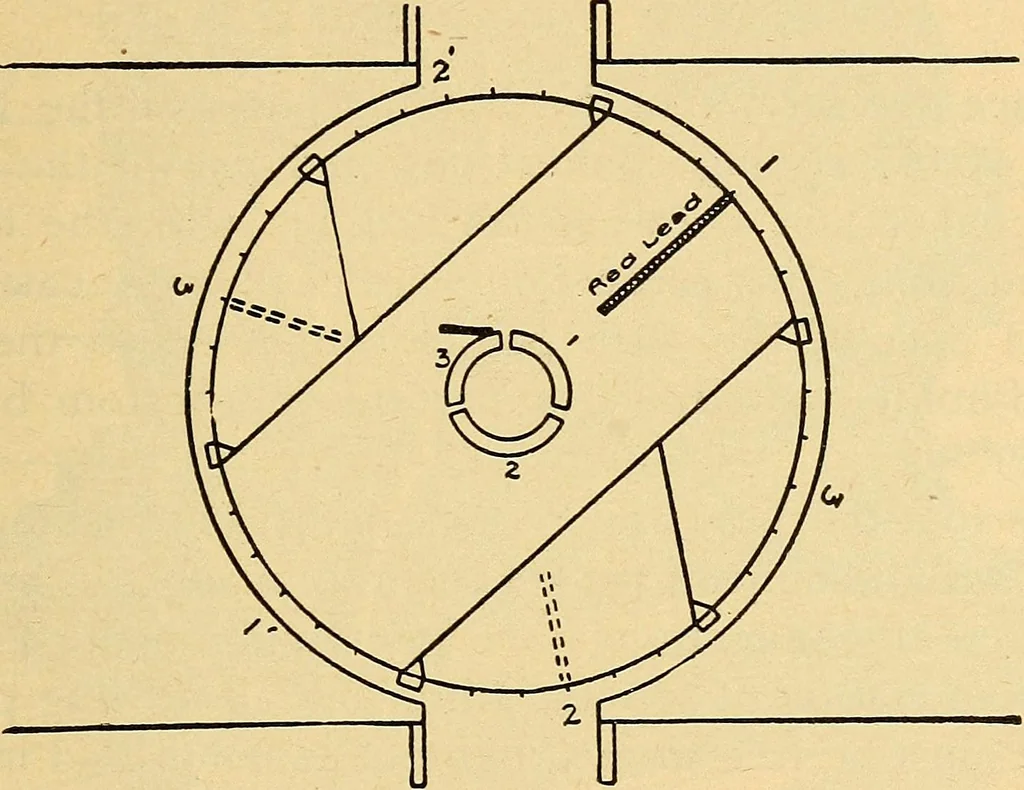

Red mark paintedon center band. FIGURE 53. ELECTRICITY FOR ENGINEERS 93 side of this coil just disappear under the left field.(See Fig. 52.) The position of the red lead and the red mark on theband are the same on all armatunes, but their positionsin the fields of the machines called left-hand… … figure 54. segment No. 1 is in the same relative position as thelast half of No. 1 coil; segment No. 2 should corres-pond with the last half of No. 2 coil, and segment No.3 with the last half of No. 3 coil, as shown on Figs. 51and 52. For left-hand machines, see Figs. 53 and 54. The distance from…
