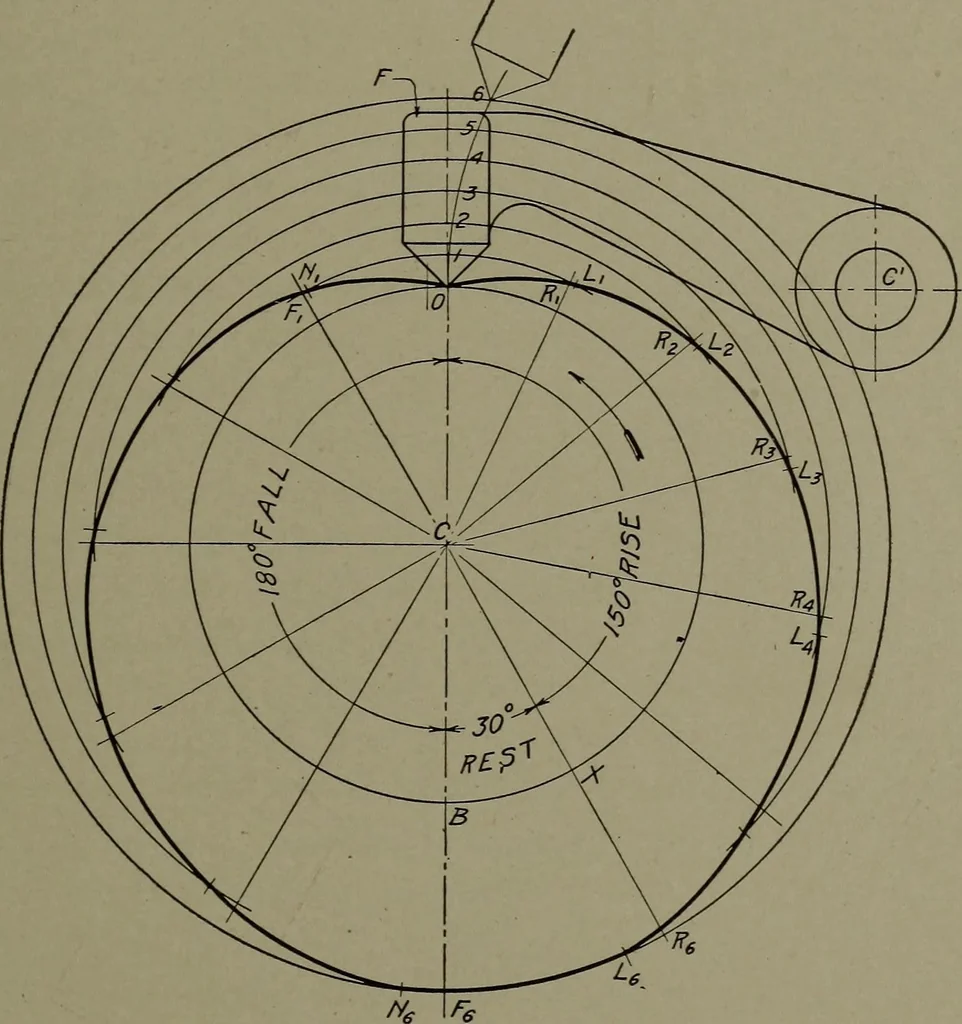

be properly judged. MACHINE DRAWING 95 Example 6. Pointed Follower Mounted on Oscillating Arm. In Fig. 84 the follower roll has been abandoned, and the originalpointed follower substituted. The motion of the follower point,however, instead of being in a straight line, is in the arc of a… … Fig. 84. Diagram of Cam with Pointed Follower on Oscillating Arm purpose of making the set of cams complete, and it is so closely acounterpart of Fig. 83 that the detail study of it is considered un-necessary. Example 7. Flat Follower with Path Perpendicular to WorkingFace. 1. Follower Positions.…
