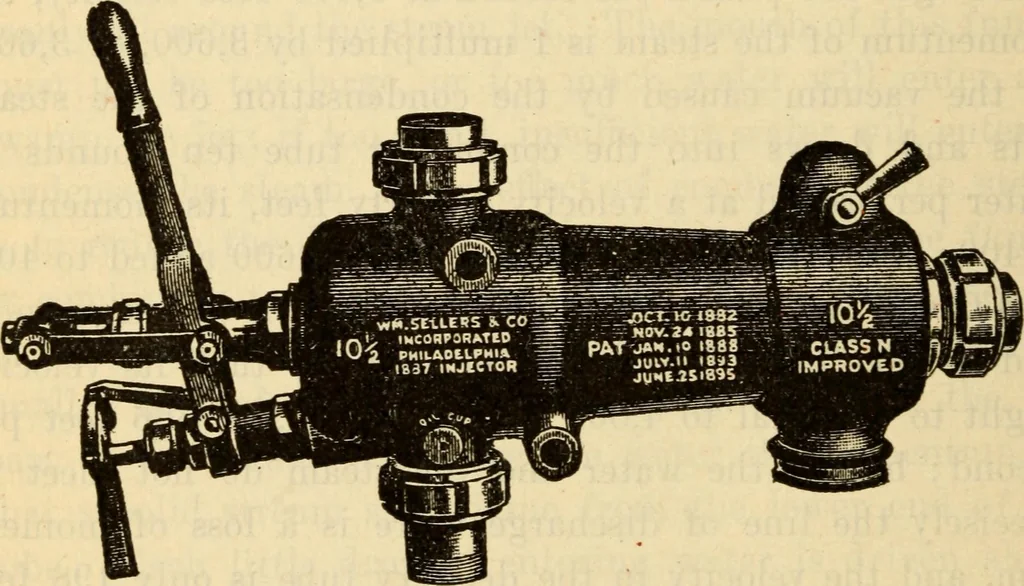

Steam Engineering combining tube, imparting to it its momentum, and form-ing with it during condensation a continuous jet of smallerdiameter, having sufficient velocity to overcome the pres-sure of the boiler. The Sellers Improved Self-acting Injector, Description.This injector is simply… … Fig. 68the self-acting injector, class n improved valve seats that may need refacing can be removed; thebody is not subject to wear and will last a lifetime. The action is as follows (referring to Fig. 69) : Steamfrom the boiler is admitted to the lifting nozzle by drawingthe starting lever (33)…
