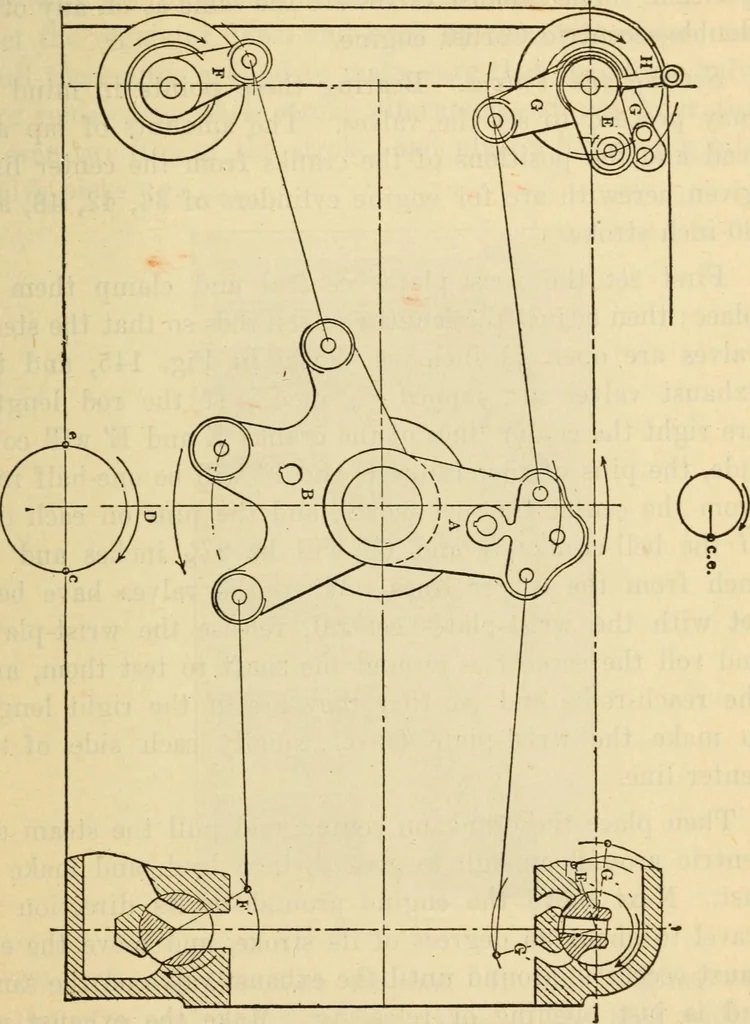

Fig. 145 In Fig. 146 the valve-cranks are in their extreme posi-tions, and the eccentrics likewise, with everything ready tostart in the direction of the arrows. On the crank end thesteam valve is lapped, and the exhaust valve is open, while .. Valves and Valve Setting 409 … Fig. 146 -reverse conditions exist on the head end. On all othertypes of valve-gear the eccentrics would be advanced 90degrees when the valves are lapped, but on this engine thesteam valve is lapped when the eccentric is on its extreme 410 Steam Engineering position. The exhaust valves are the same…
