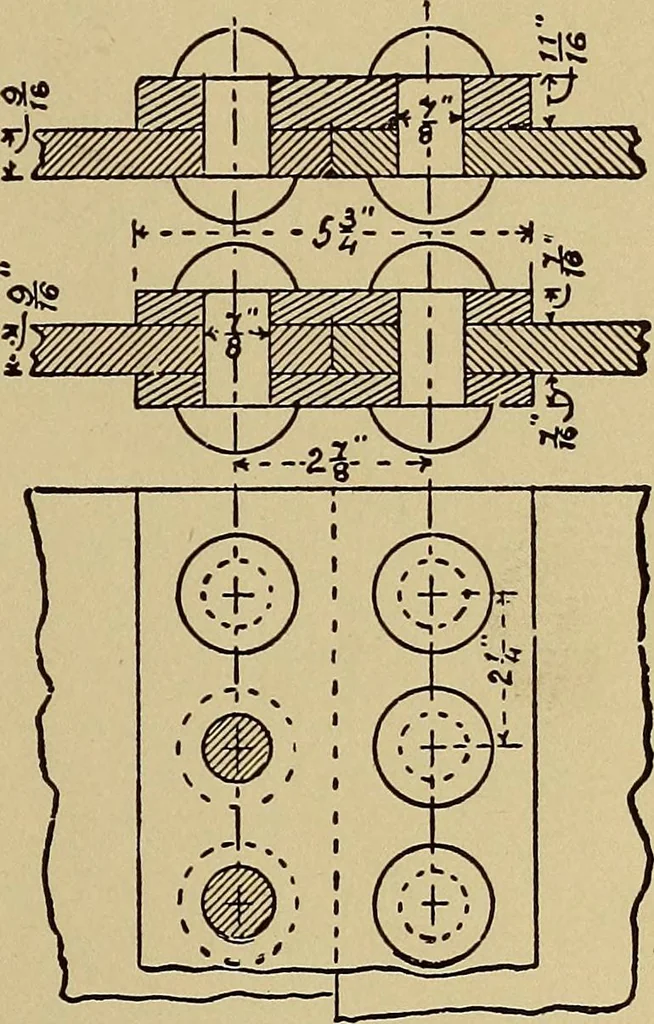

Thicknesses of Plates. Thickness of plates. 5 /8 tV X 9 % 11 Diam. of rivetsPitch of rivets lA IH 2 2tV 1 2i ItV2X li 21 Distance from center of rivets to edge of plate = IM times diameter of rivets. Example 3. Single-riveted butt Joints. In Fig.158 are shown two forms of single riveted butt… … Fig. 158—Single Riveted Butt Joints. Example4. ComerofWrought-ironTank. Thisexercise is to illustrate the connection of plateswhich are at right angles to one another by meansof angle irons. Fig. 159 is a plan and elevation 80 MECHANICAL DRAWING of the comer of a wroiiglit-iron tank. The sidesof…
