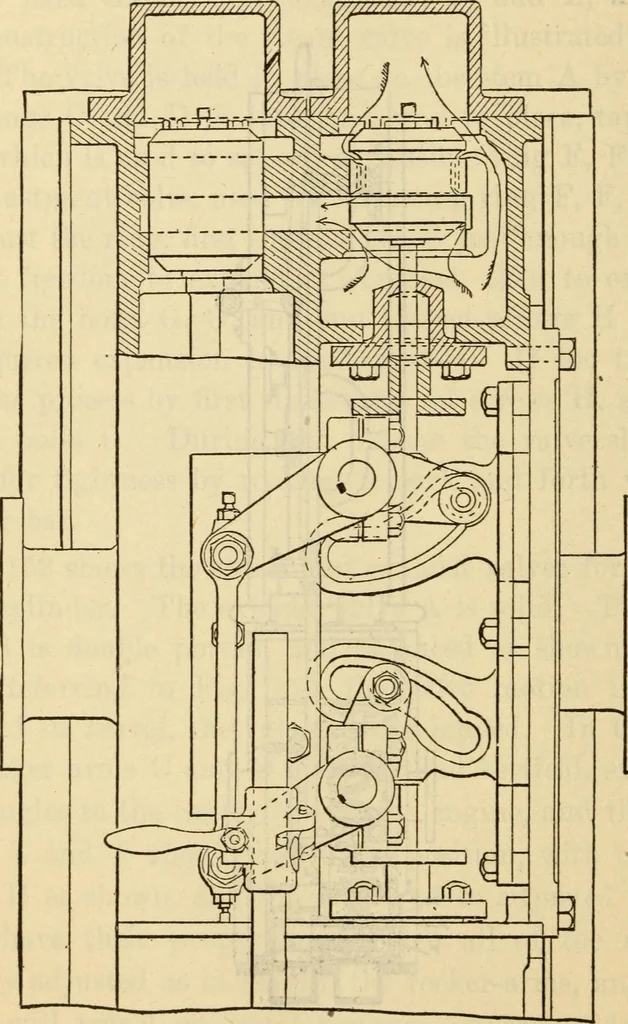

as to bring the wrist-cranks Valves and Valve Setting 421 in line. Fig. 151 shows the steam valve just on the pointof opening. The arrows indicate the direction of flow ofthe steam. fe Fig. 152 Fig. 153 shows the same valve at full opening, and thewrist cranks at the extreme position of their… … Fig. 153 versed, and the eccentric is on the other center, the steamvalve here shown will be back in the position shown in Fig.152, and the crank-end valve will be full open. The ex- Valves and Valve Setting 423 haust valves should be so adjusted that they will close, andopen alternately at about…
