Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 435

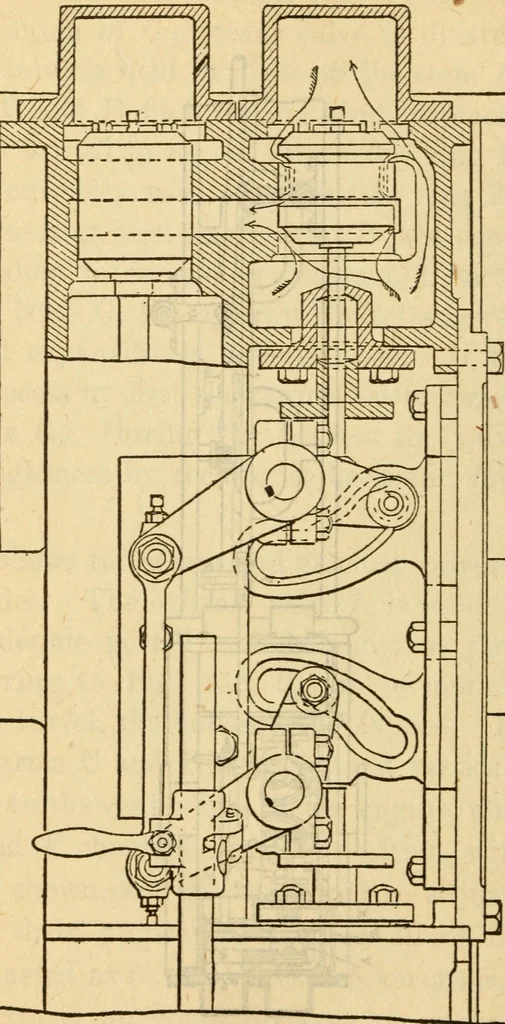

ranks Valves and Valve Setting 421 in line. Fig. 151 shows the steam valve just on tJ«ie pointof opening. The arrows indicate the directioi? f \iow ofthe steam. s> Fig. 152 Fig. 153 shows the same valve at full opening, and thewrist cranks at the extreme position of their travel in… … Fig. 153 fersed, and the eccentric is on the other center, the steamv^alve here shown will be back in the position shown in Fig.152, and the crank-end valve will be full open. The ex- Valves and Valve Setting 423 haust valves should be so adjusted that they will close, andopen alternately at about…
