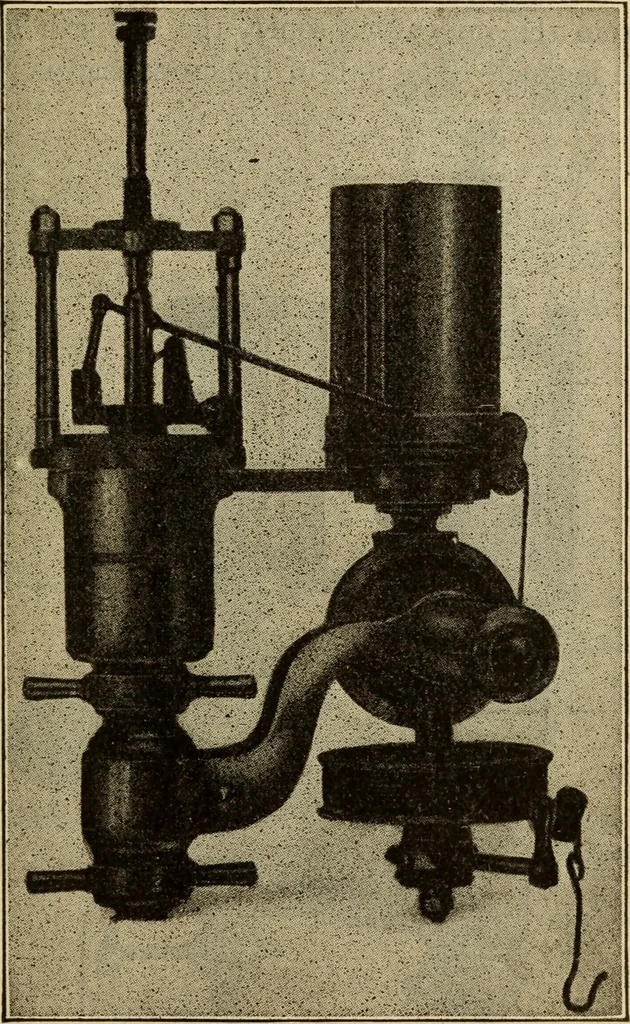

rectly to the indicator, thusproducing a neat and very convenient arrangement. Figure 166 illustrates a Crosby reducing wheel with theindicator mounted in place. The reducing motion is en-tirely distinct from the indicator, and terminates at thebottom with a swivel joint by which it is attached to… … Fig. 166crosby indicator and reducing motion assembled that the cord pulley of the indicator drum is directly overthe small sheave about which the cord from the paperbarrel is passed. Fig. 167 shows this position to better ad- 472 Steam Engineering vantage. The principal object sought and attained…
