Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise .. (1916)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago, F.J. Drake & company · leaf 706

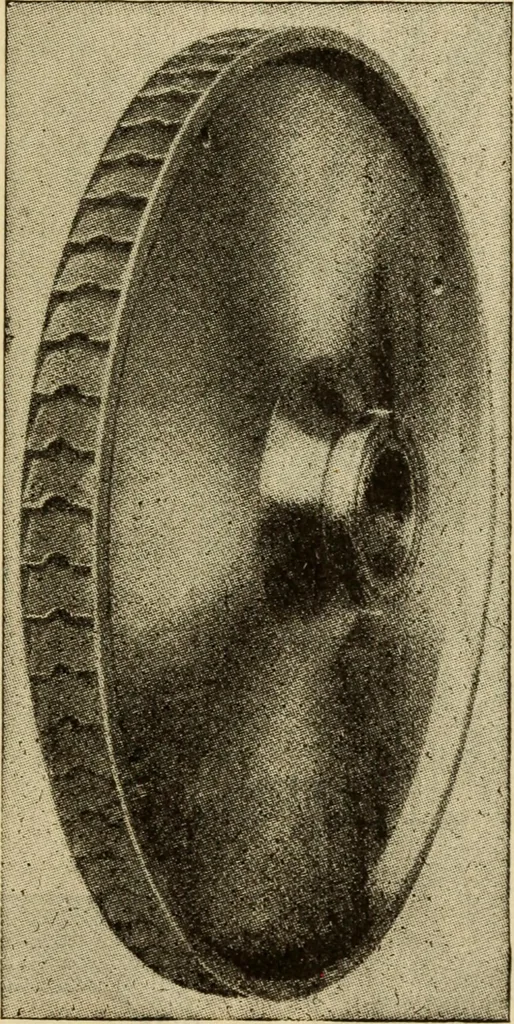

n engine, the dimensions of which have alreadybeen given, was a reversing rolling mill engine. The stuff-ing box used in the Eateau turbine is clearly illustrated inFigs. 240 to 243. The Reidler-Stumpf Steam Turbine This turbine is manufactured in Germany and its essen-tial characteristics are the… … Fig. 298 of one of the wheels, and Fig. 299 shows sections of abucket, and nozzle. The buckets are worked out of a solid forged wheel witha milling cutter, consequently they are very strong, anddurable. 693 r 69-4 Steam Engineering The steam jet enters the bucket C from the nozzle B, andis…
