Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 1029

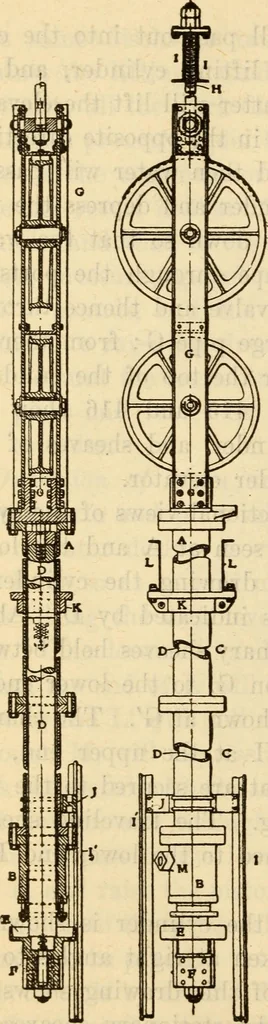

. The traveling sheavesFVre carried in a crosshead attached to the lower end F ofthe plunger. The internal construction of the cylinder is shown inthe vertical section, which is taken at right angles to theexterior view. The upper end of this drawing shows theway in which the bearings of the… … Fig. 415
