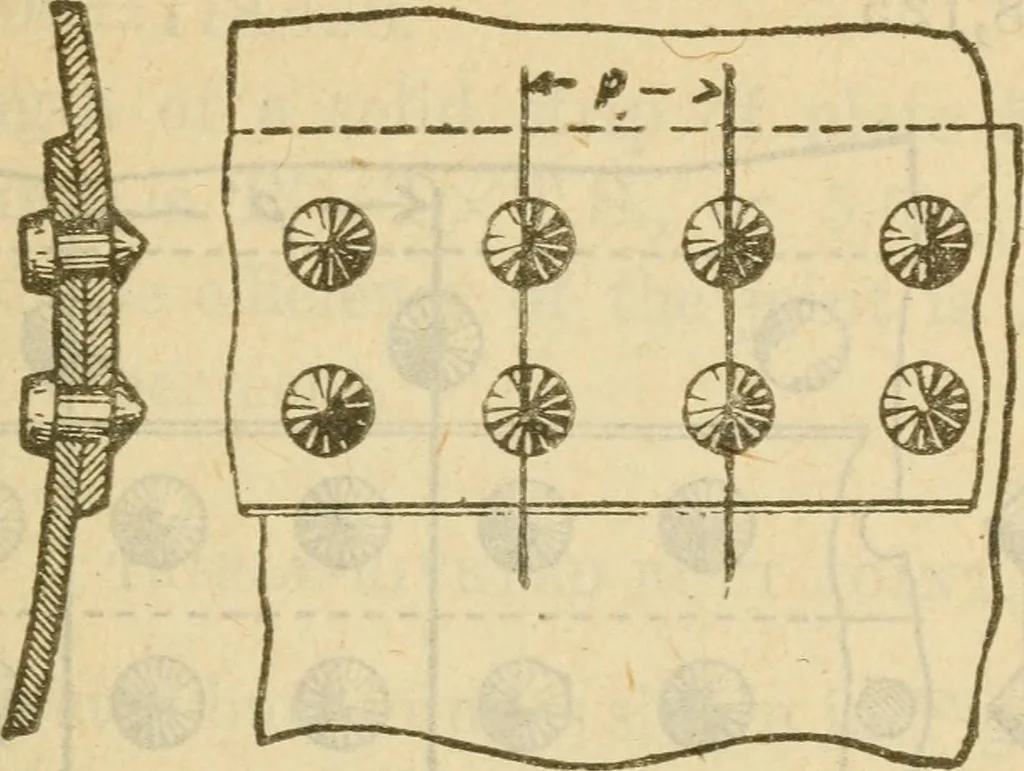

ble-riveted lap joint. The style ofriveting in this joint is what is known as chain riveting. In case the rivets are staggered, the same rules for cal-culating the efficiency will hold as with chain riveting, forthe reason that with either style of riveting the unit stripof plate has a width equal… … DOUBLE RIVETED LAP JOINT The strength of the unit strip of solid plate is PXTXT. S.=85,312. The strength of net section of plate after drilling isP—DxTXT.S.=o9,062. The shearing resistance of two rivets is 2AXS=70,686. The crushing resistance of rivets and plate is DX^XTXC=:78,7oO. It thus appears…
