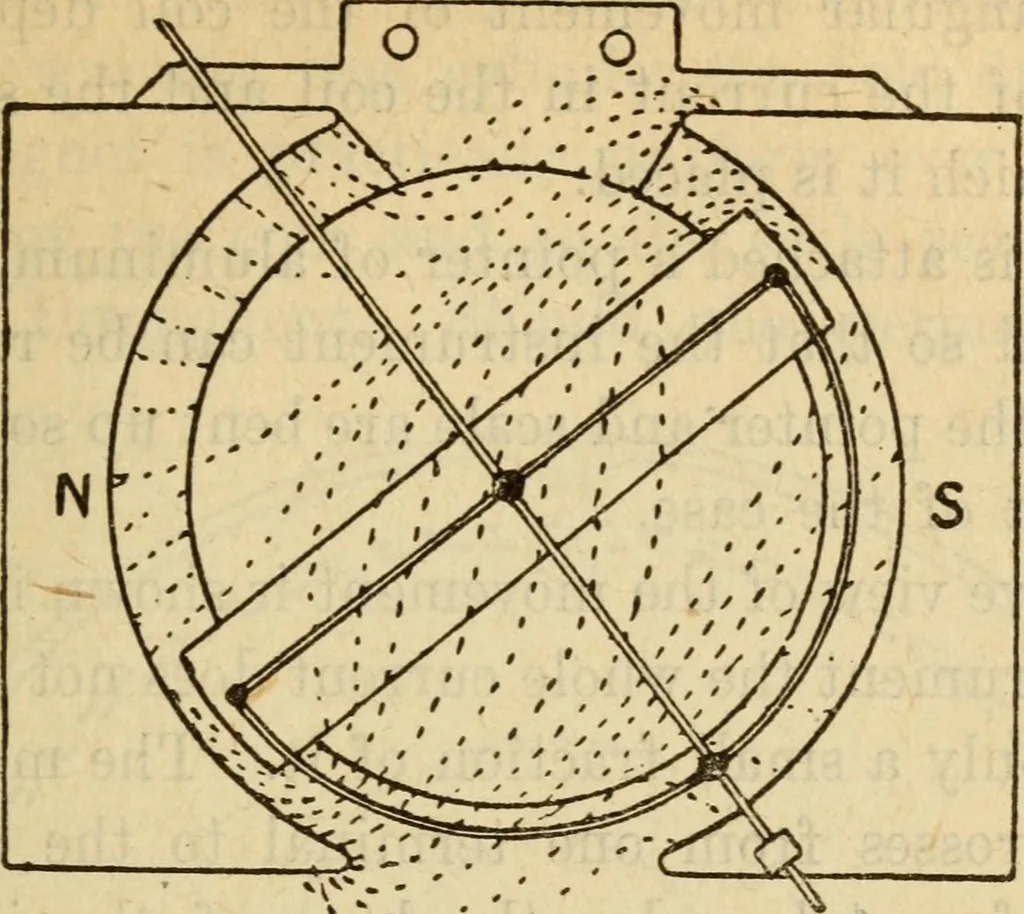

ther isunwound. This arrangement corrects for any variation intemperature, for the effect on one spring would be counter-acted by the opposite effect on the other. The coil normallylies at 45° to the line joining the poles of the magnet, andconsequently the magnetic field created by a current in… … Fig. 610 diagram of magnets, flux, coil and inner core of weston instrument
