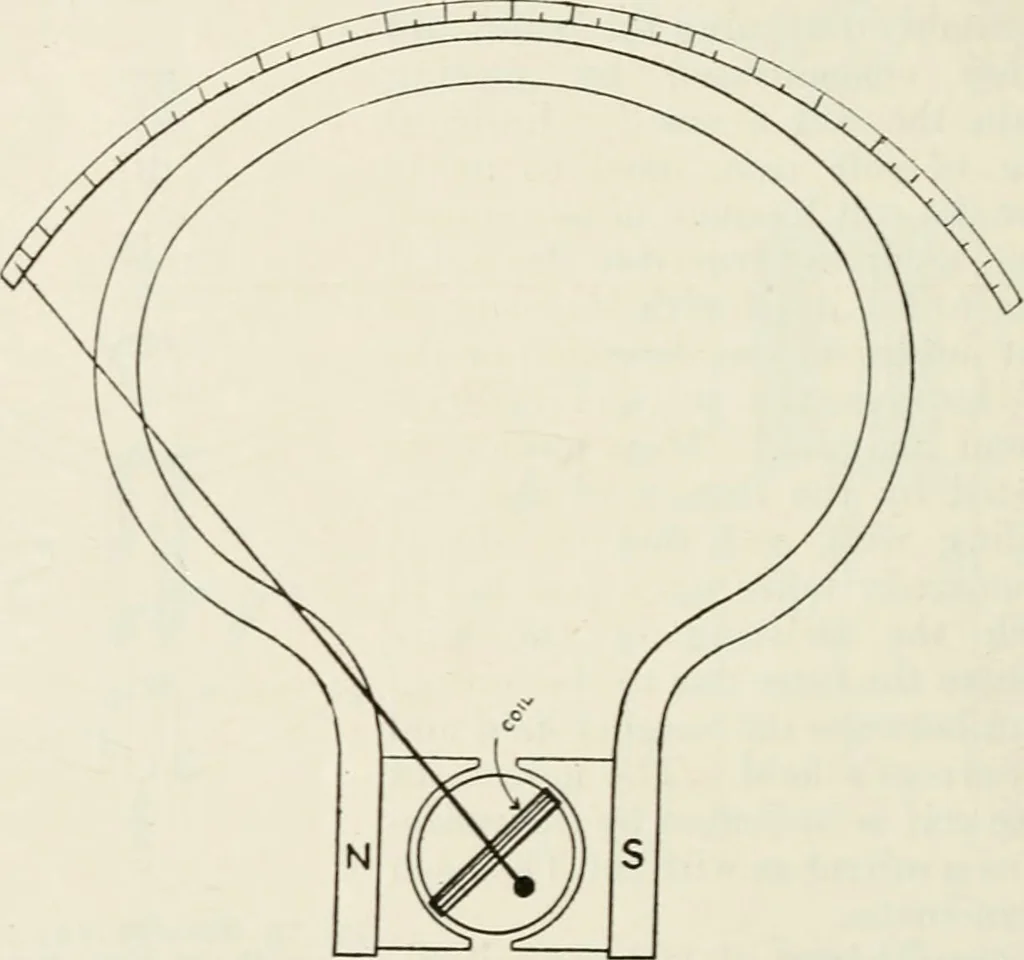

iiett!r. 94 ELEMENTARY TELEGRAPHY lip iu the tube wlien it rotates or swings iu the magueticfield between the poles. The Westou voltmeter is a moving coil galvanometerAvith its scale marked to give direct voltage readings.The movable coil consists of a niimber of turns of finewire wound iipon a… … Fi<:. 75.—The elements of the Weston voltmetei-. pieces insures the concentration of the field of the largepemianent magnet shoAAii in Fig. 75. The movable coilis controlled by two flat spiral hair-springs which arewound in opposite directions; consequently, when oneis twisted up by a movement…
