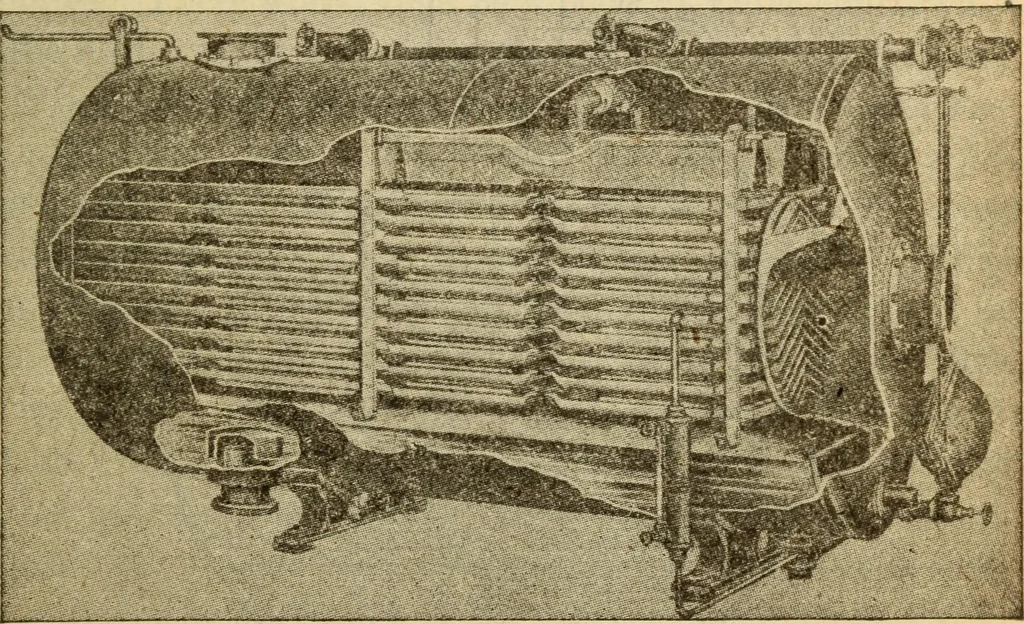

in direct contact with, and heat Feed Water Heaters 195 it to the temperature of the exhaust. Lime and other solidswhich may be held in solution in the water will^ whenliberated by the heat^ form mostly on the under side of thepans and hence will not detract from the efficiency of theprocess, as… … Fig. 74 SECTIONAL ELEVATION OF HOPPES CLASS R FEED-WATER HEATER portant. In the Hoppes apparatus the water is regulatedto the heater by a float in a separate float-chamber operat-ing a double-disk balanced valve of the company^s manu-facture. Branch pipes from the main feed-pipe are con-nected to…
