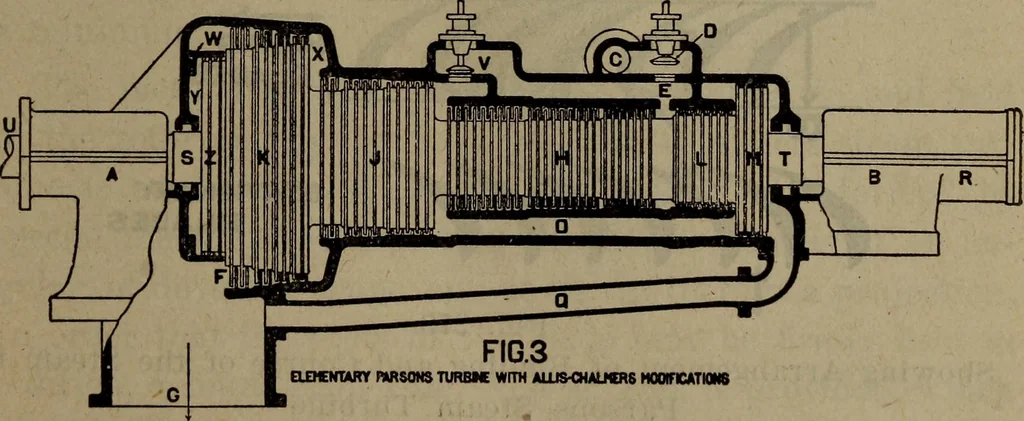

CLEHENTARY Rl^RS0N8 TYPE STEAM TURBINE Fig. 277 the low pressure cylinder of a compound reciprocating en-gine. Valve V is arranged to be operated^ either by thegovernor or by hand^ as the conditions may require. Fric- … Fias OEMENTARY mRSONS TVJRBME WITH AUl&CHALIffRS HOOmCATIQNB Fig. 278 tionless glands made tight by water packing are providedat S and T where the shaft passes out of the cylinder. Theshaft is extended at U and connected to the generator shaftby a flexible coupling. 652 Steam Engineering. The…
