Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 341

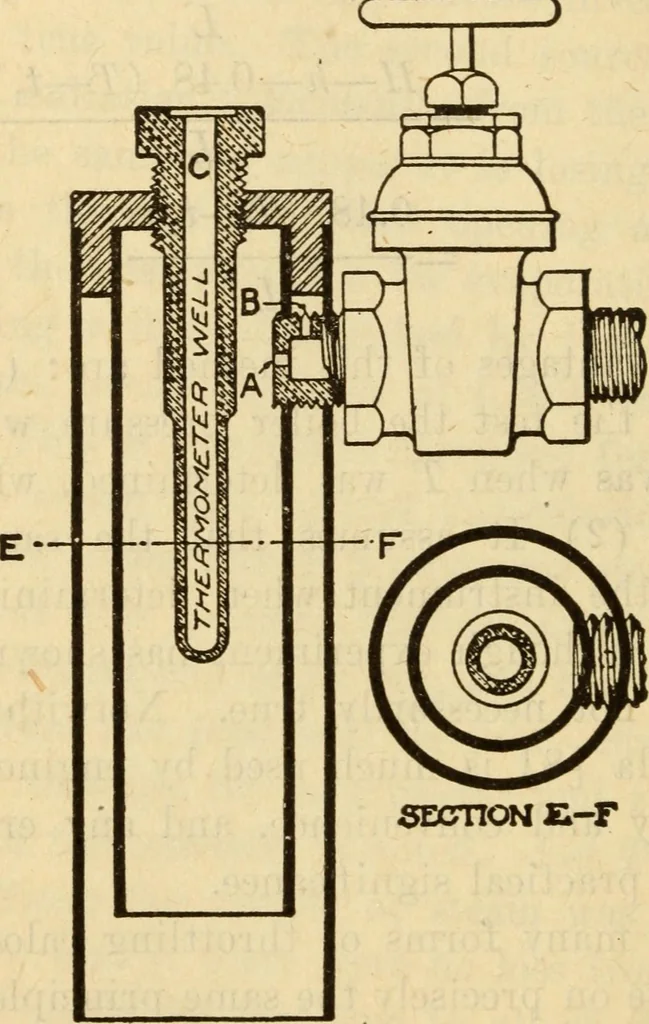

atmos-pheric pressure, and its temperature at this pressure ismeasured by a thermometer placed in the cup C. To pre-vent radiation losses the Annular space between the tv/o 328 Steam Engineering cjlinders is used as a jacket^ and is supplied with steamthrough the hole B. The limits of the… … Fig. 104compact throttling calorimeter sufficient to evaporate it, and superheat the steam thu3generated. Separating Calorimeter, The separating calorimeter(Fig. 105) mechanically separates the entrained waterfrom the steam and collects it in a reservoir, where itsamount is either indicated by a…
