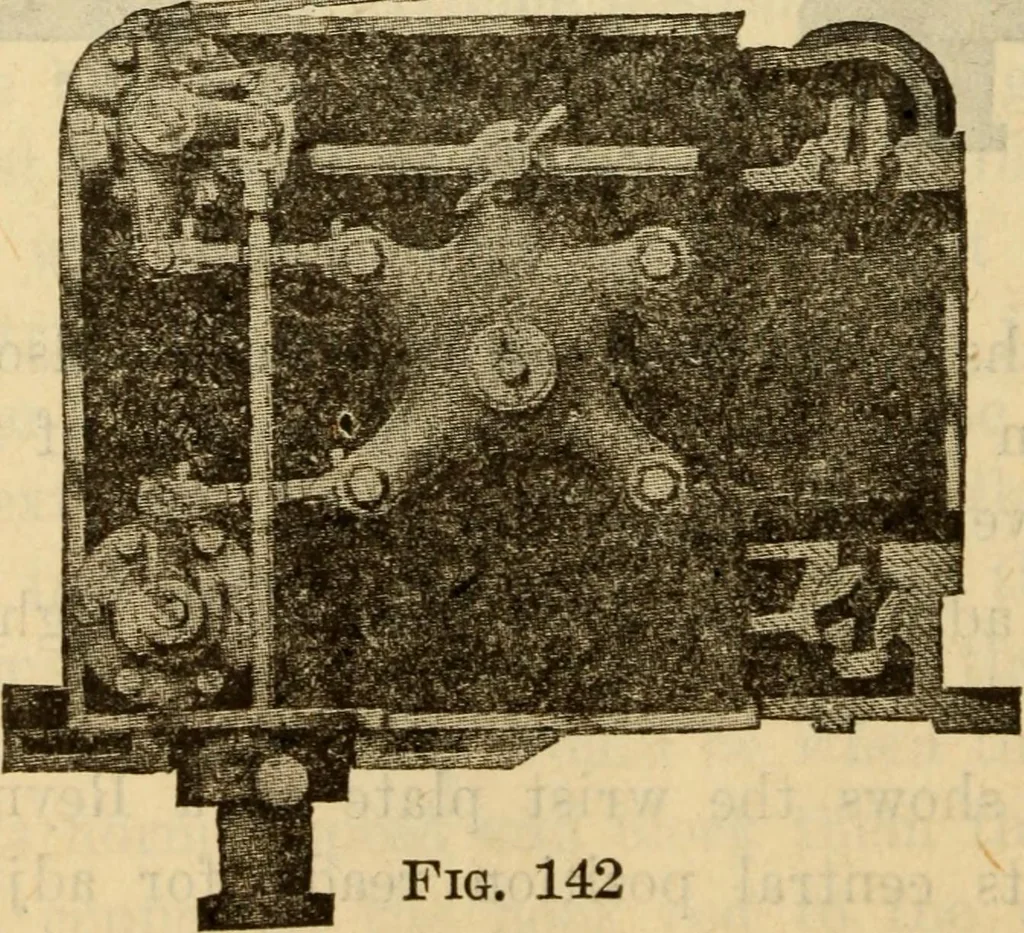

amount of lead. The exhaust valves will be correct if theyhave been set according to table 32—the wrist plate beingcentral. … Fig. 142 shows the wrist plate of a heavy duty or re-liance type Eeynolds Corliss engine in its central position, Valves and Valve Setting 405 ready for adjusting the lengths of the valve rods. Thevalves in this tj-pe of engines are double ported. Fig. 143 shows the position of the wrist plate of a…
