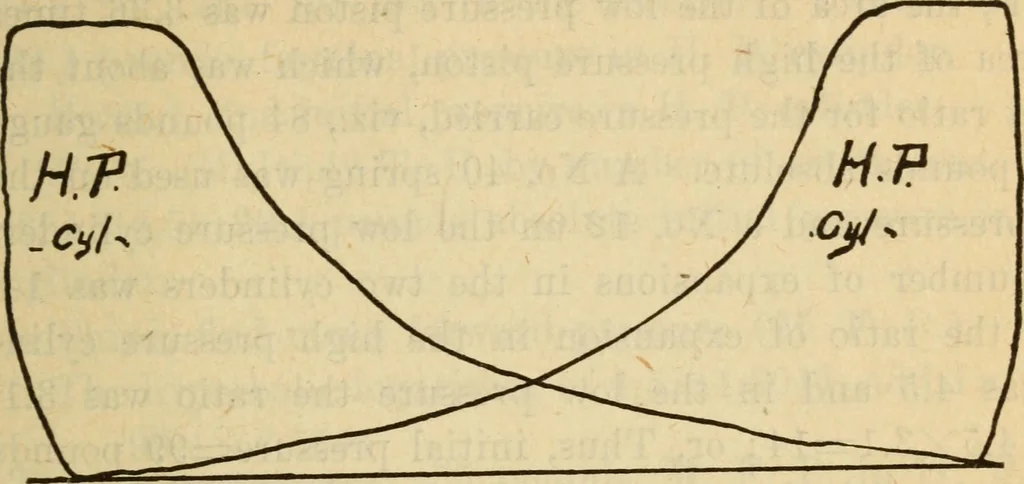

Fig. 195 much lead which, together with the compression, caused amomentary rise in the pressure above the normal. Thelead at B is approximately correct. The difference in ter- Diagram Ayialysis 509 minal pressures at C and D is the result of shifting of thepoints of cut off caused by variations in… … -/ Fig. 196 pheric line^ showing that the exhaust is in no way restrictedor cramped. I. H. P. is 65.7 and steam consumption 21pounds per I. H. P. per hour.
