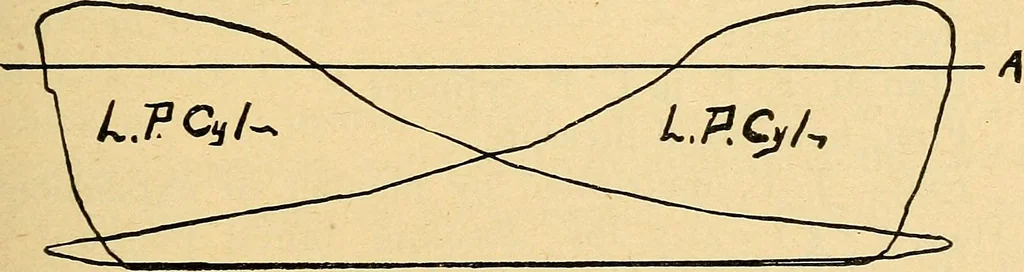

figure 65. cut off than it is when cut off occurs later in thestroke. The loop at A is caused by too much lead DIAGRAM ANALYSIS 219 which, together with the compression, caused amomentary rise in the pressure above the normal.The lead at B is approximately correct. The differ- HP ence in terminal… … figure 67. in no way restricted or cramped. I. H. P. is 65.7 andsteam consumption 21 lbs. per I. H. P. per hour. Figs. 66 and 67 are diagrams taken from a cross 220 ENGINEERING compound condensing corliss engine. The highpressure cylinder was 24 x 48 in., and the low pressurecylinder was 44 x 48…
