Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 522

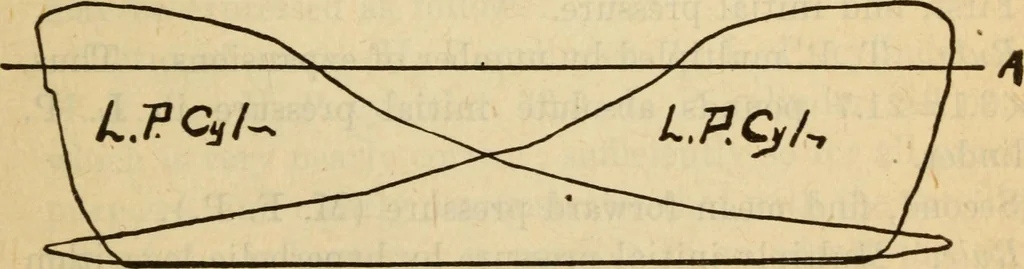

-/ Fig. 196 pheric line^ showing that the exhaust is in no way restrictedor cramped. I. H. P. is 65.7 and steam consumption 21pounds per I. H. P. per hour. … Fig. 197 Figs. 196 and 197 are diagrams taken from a cross com-pound condensing Corliss engine. The high pressure cylin-der was 24x48 inches^ and the low pressure cylinder was44x48 in. The steam from the high pressure exhausted 510 Steam Engineering into a receiver^ and from thence into the low…
