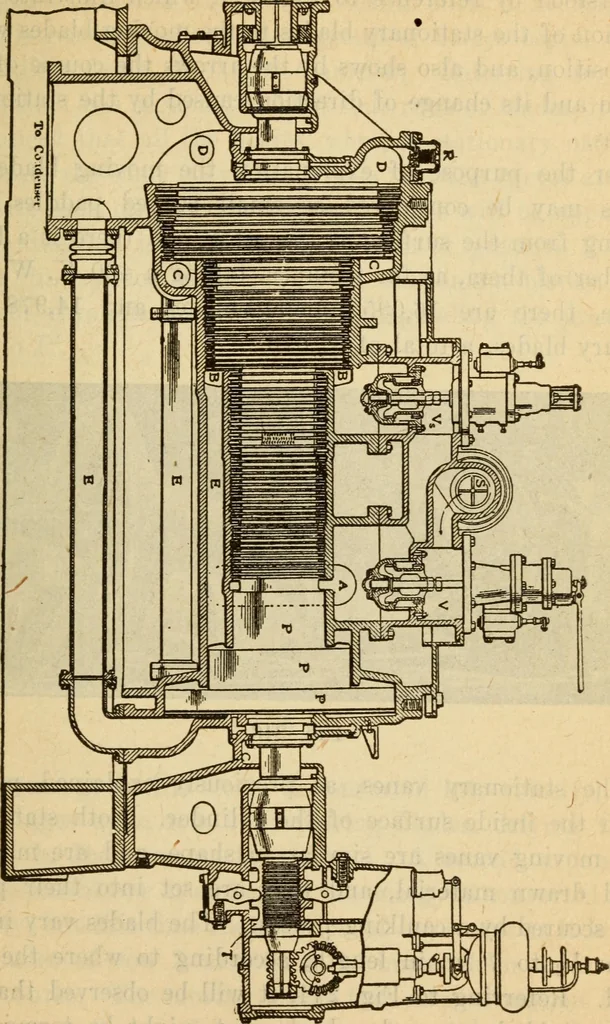

r, 6 feet. By reference to Fig. 244 it will be seen that the insideof the cylinder is studded with rows of small stationaryblades, and that the rotor or revolving part of the ma-chine is also fitted with rows of small blades, similar inshape and dimensions to the stationary blades. V\Tien theupper… … Fig. 245 SECTION OF STANDARD WESTINGHOUSE SINGLE FLOW TURBiNE 596 Steam Engineermg understood by reference to Fig. 247, which illustrates therelation of the stationary blades to the moving blades whenin position, and also shows by the arrows the course of thesteam and its change of direction caused…
