Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise on the care and management of steam engines, boilers and electric machinery (1922)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & company · leaf 691

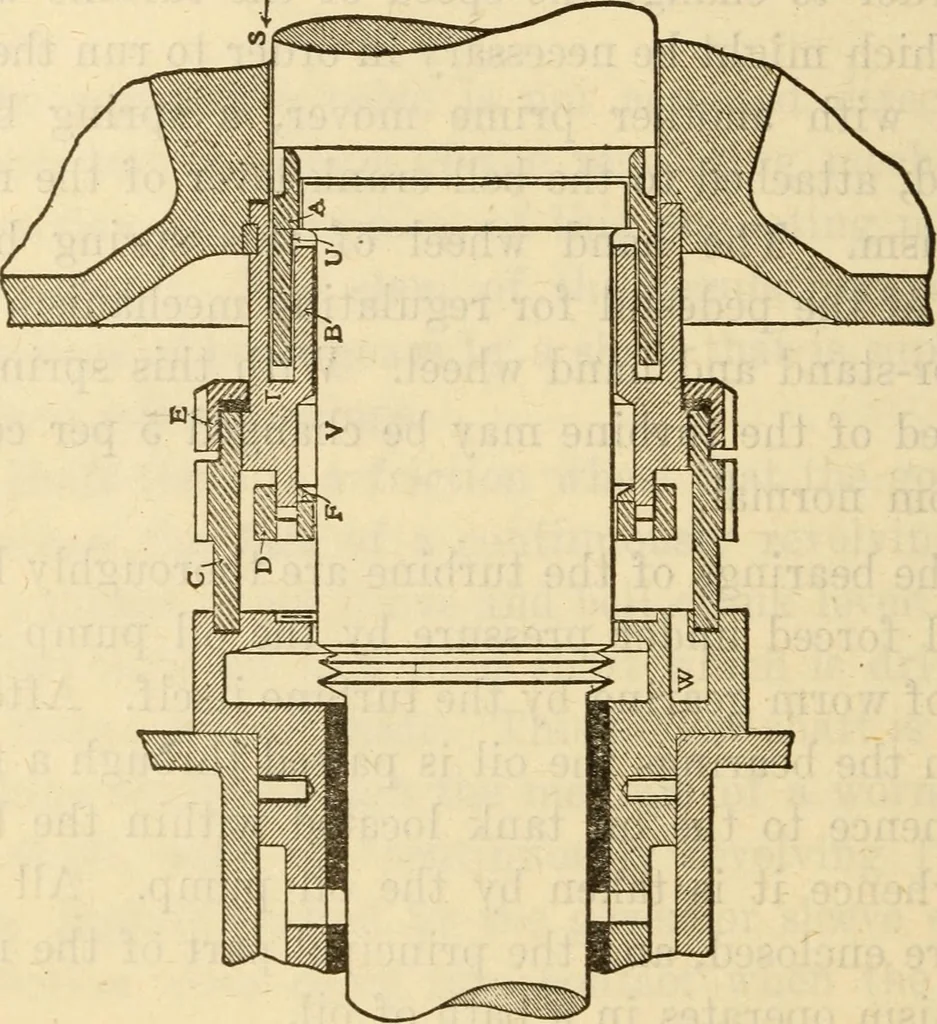

team frompassing axially through the small clearance between theshaft and the sleeve. The reader will readily understandthat it would not be practical to use such a long sleeve in 678 Steam Engineering the construction of a steam turbine, as this arrangementwould considerably increase the length of… … Fig. 290 In the Hamilton-Holzwarth turbine, use is made of thetelescopic idea; that is the entire length of the sleeve issplit into several parts, and these single parts are shiftedtogether. In Fig. 290 the ring A screwed upon the shaftprojects axially into a groove of the ring B, and…
