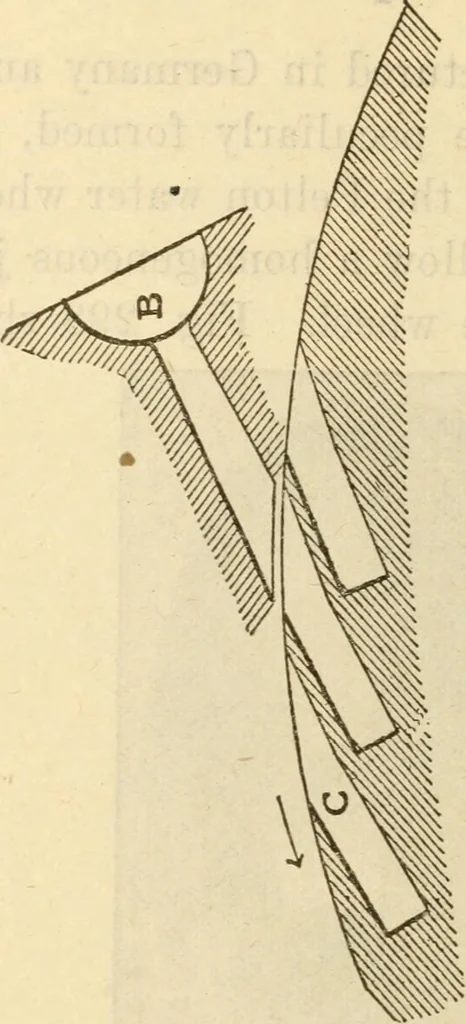

Fig. 298 of one of the wheels, and Fig. 299 shows sections of abucket, and nozzle. The buckets are worked out of a solid forged wheel witha milling cutter, consequently they are very strong, anddurable. 693 694 Steam Engineering The steam jet enters the bucket C from the nozzle B^ andis deflected…
