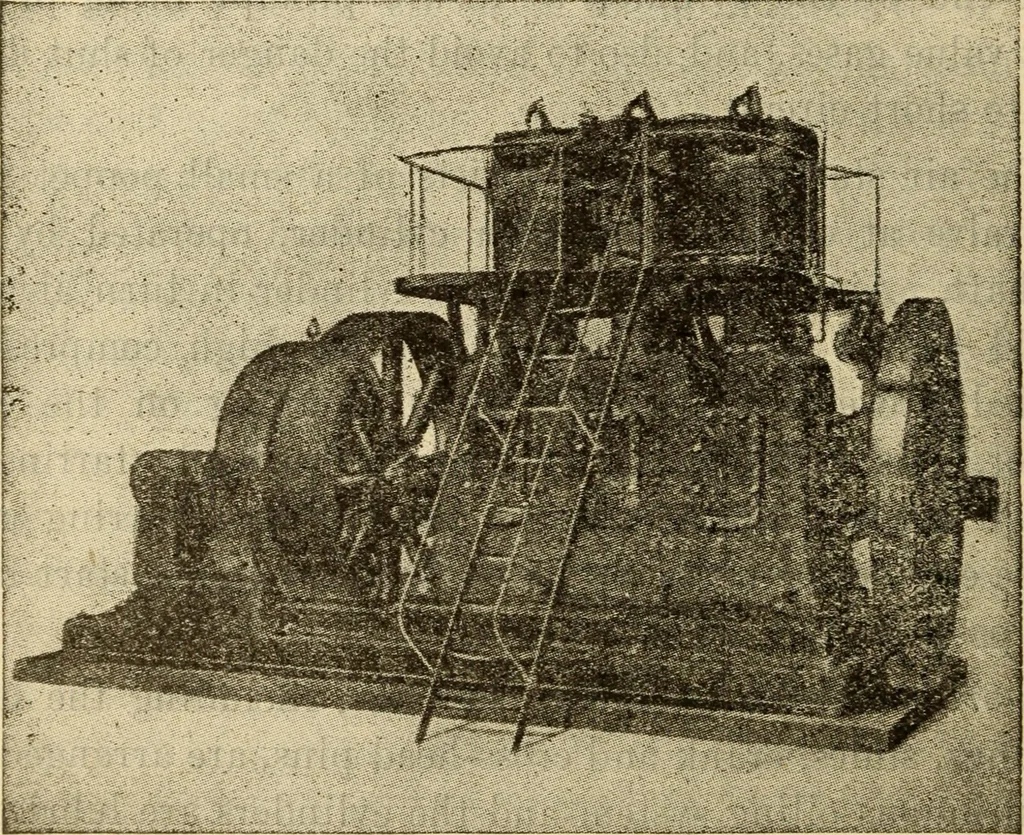

perates at 107 revolu-tions per minute. Each unit is rated at 1,000 K. W. butboth engines and generators were designed for large over-load capacities. The engines shown in Fig. 302 are said to have the larg-est cylinder diameter of any gas engine yet built in the 770 Steam Engineering United… … Fig. 327 westinghouse three-cylinder vertical gas engine Front View—Direct Connected Tjipe builders also mannfacture a horizontal heavy, duty doubleacting type of gas engine of large capacity. Fig. 329 is a vertical section through one of the West-inghonse cylinders^, showing the gas and air…
