Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 375

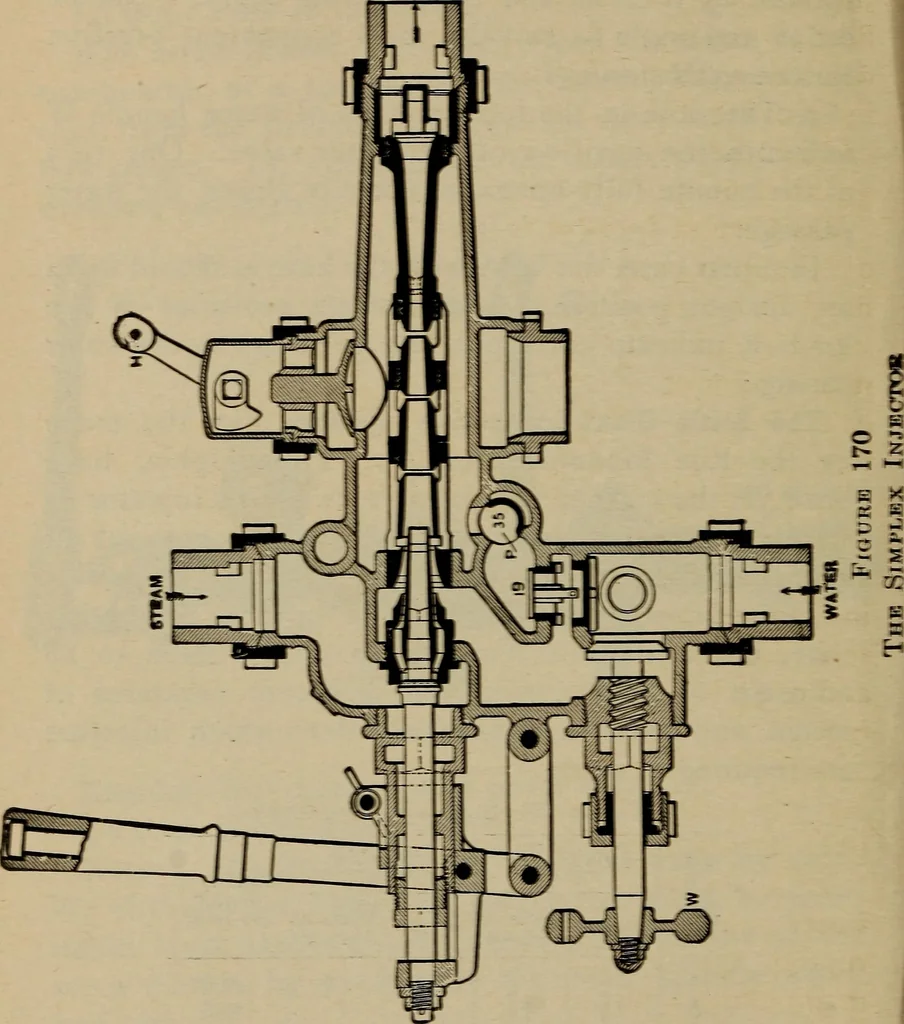

lever which allows them to beadjusted to work correctly at different pressures ofsteam, and under the many conditions which injectorsare required to work. Table 20—Size and Capacity «(-l p? Copper Pipe Iron Pipe CD 9, Outside Inside Gallons of So V Water %5 Steam Water &Delivery Steam Water… … INJECTORS, STEAM GAUGES, ETC. 371 To Operate. Have the combining tube in position toallow a sufficient quantity of water to condense thesteam when the starting valve is full open, then openthe starting valve slightly; when water shows at over-flow, open full. Regulate the water by moving…
Locomotives
