Steam engines, a thorough and practical presentation of modern steam engine practice (1920)
Ludy, Llewellyn V., 1875-, American Technical Society · Chicago, American technical society · leaf 48

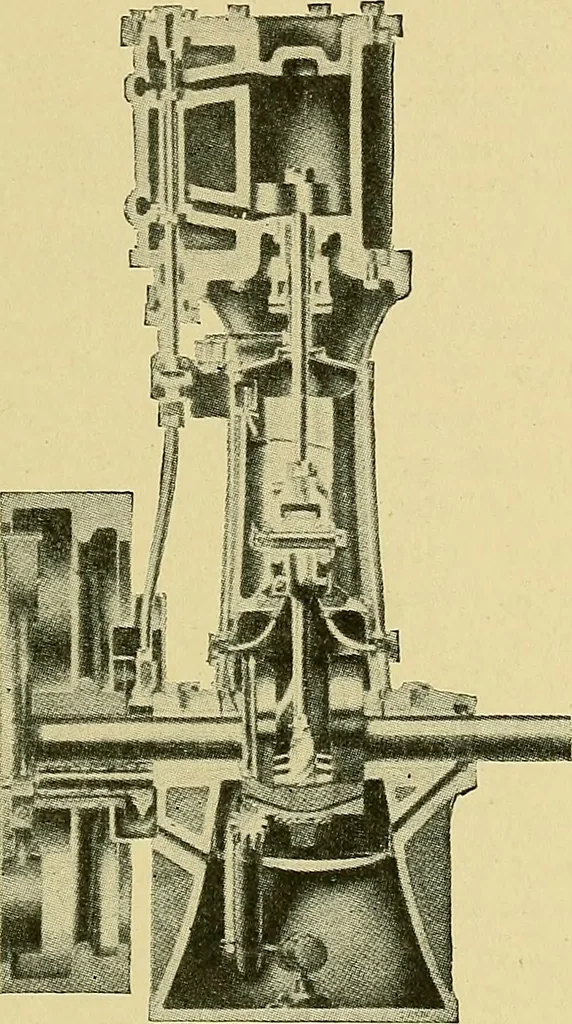

-ings. This type of engineis furnished by the makersin sizes from Sf inches X 3inches up to 9 inches X 7 inches for general service. Much largervertical engines may be obtained, but are made as a special order.The engine illustrated is so designed to operate at speeds from 250 to500 revolutions per… … Fig. 24 Vertical High Speed Engine 34 STEAM ENGINES Advantages of Vertical over Horizontal Type. While the discus-sion given above has had to do with a vertical engine of rather smalldimensions and power, yet it.must be borne in mind that verticalengines in very large units are built and…
