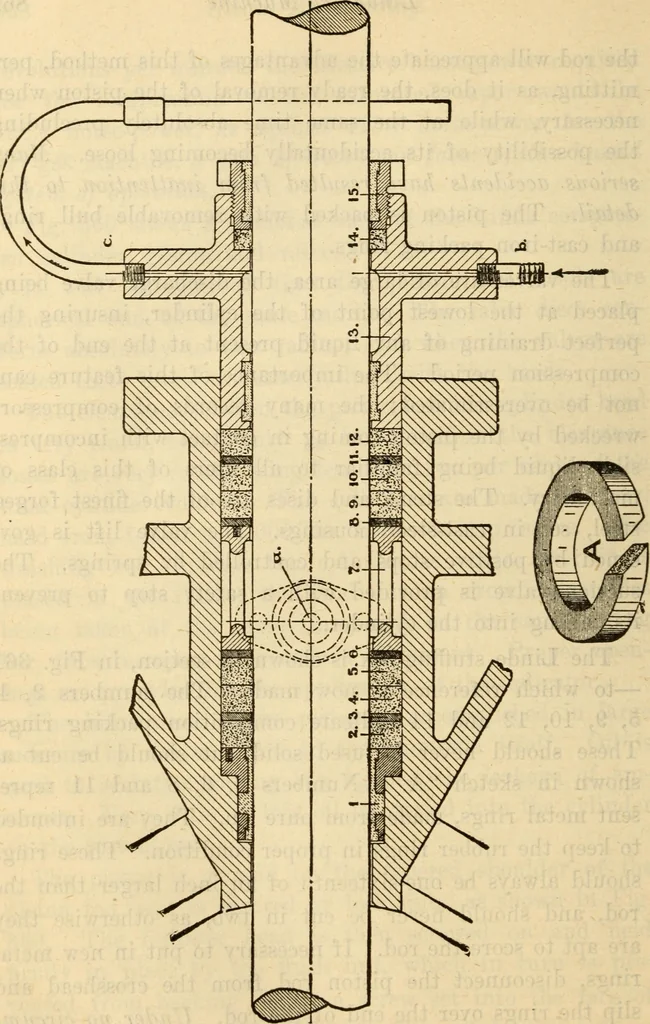

t asshown in sketch ^^A. Numbers 3, 6, 8 and 11 repre-sent metal rings, made from pure tin. They are intendedto keep the rubber rings in proper condition. These ringsshould* always be one-sixteenth of an inch larger than therod, and should never be cut in two, as otherwise theyare apt to score the… … Fig. 861sectional view of linde stuffing box Linde Ice 2Iachine 871 Number 7 designates the lantern which forms an oilstorage in the middle of the stuffing box. The oil supplyis taken in at the point marked ^sJ through a pipe con-nection from the oil trap. This passage being alwaysopen^ the oil is…
