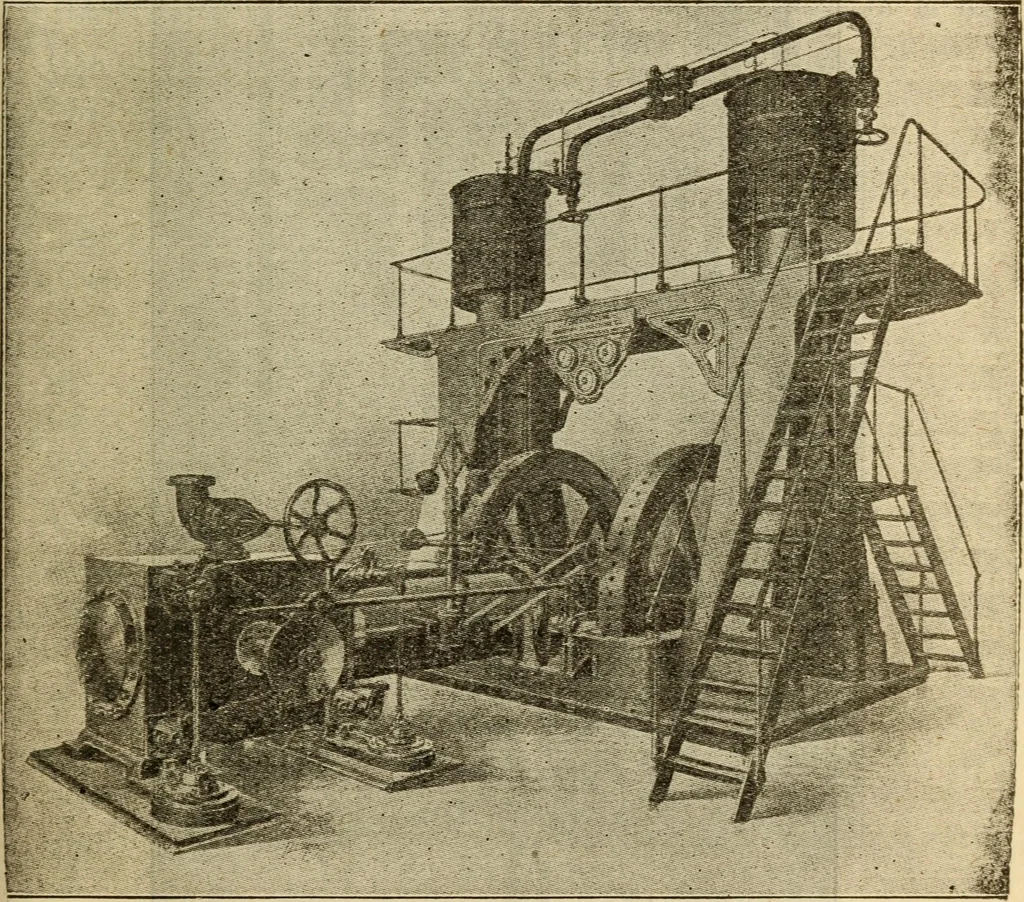

r cent in the steam consumption. Heavy pump columns terminate at the bottom in broadflanges bolted to-a substantial foundation plate, cast inone piece and provided with four journal bearings forthe crank shaft. Convenient stairways and galleries are Consolidated Ice Machine sa provided to furnish… … FiG. 367 VEETICAL C0NS0Ln)ATED REFRIGERATING MACHINE der below the piston, thus keeping the pump cylinder andpiston cool. An oil chamber, which effectually seals the stuffing-boxaround the pump piston rod, is formed in the lower partof the pump. As the pressure on the stuffing-box end of 882 Steam…
