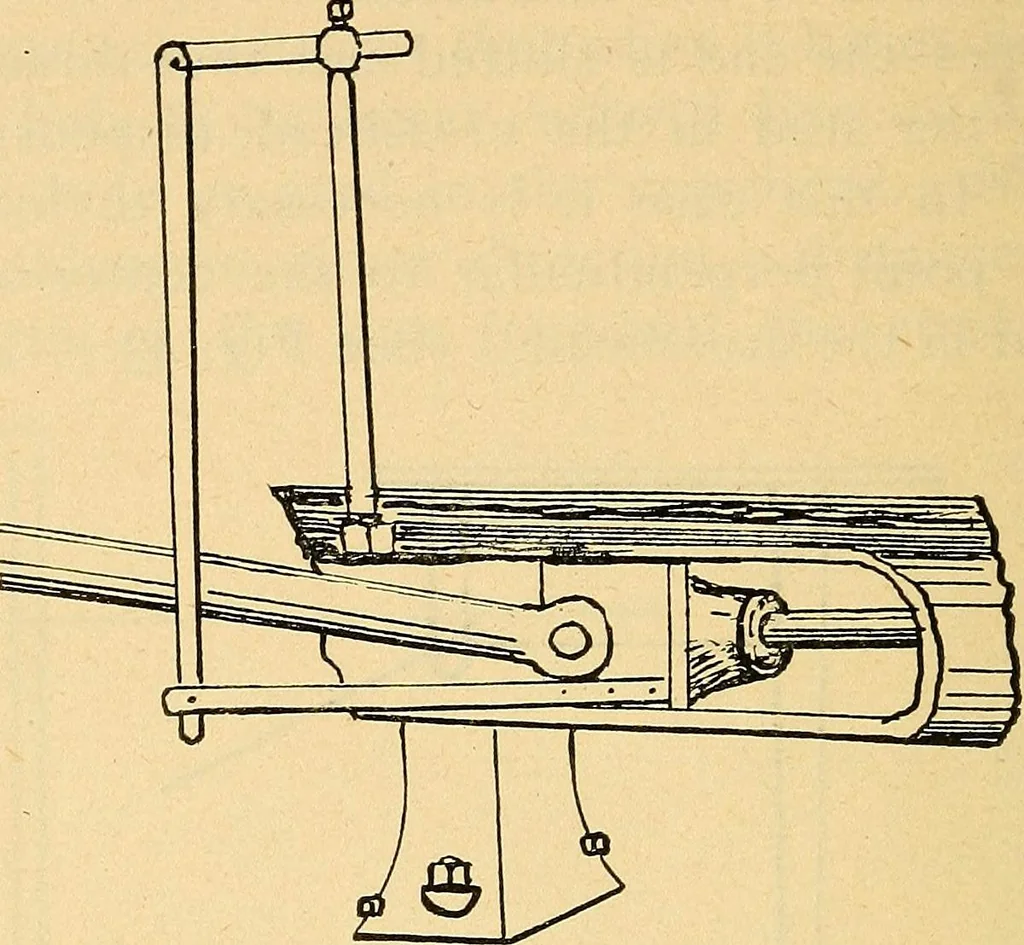

ever. The cord canbe attached to the pendulum at a point near the pivotwhich will give the desired length of diagram. Thispoint can be determined by multiplying the length ofthe pendulum by the desired length of diagram anddividing the product by the stroke. For conveniencethese terms should be… … figure 46. the distance from center of pivot to point of connec-tion for the cord. This can be either a small hofe
